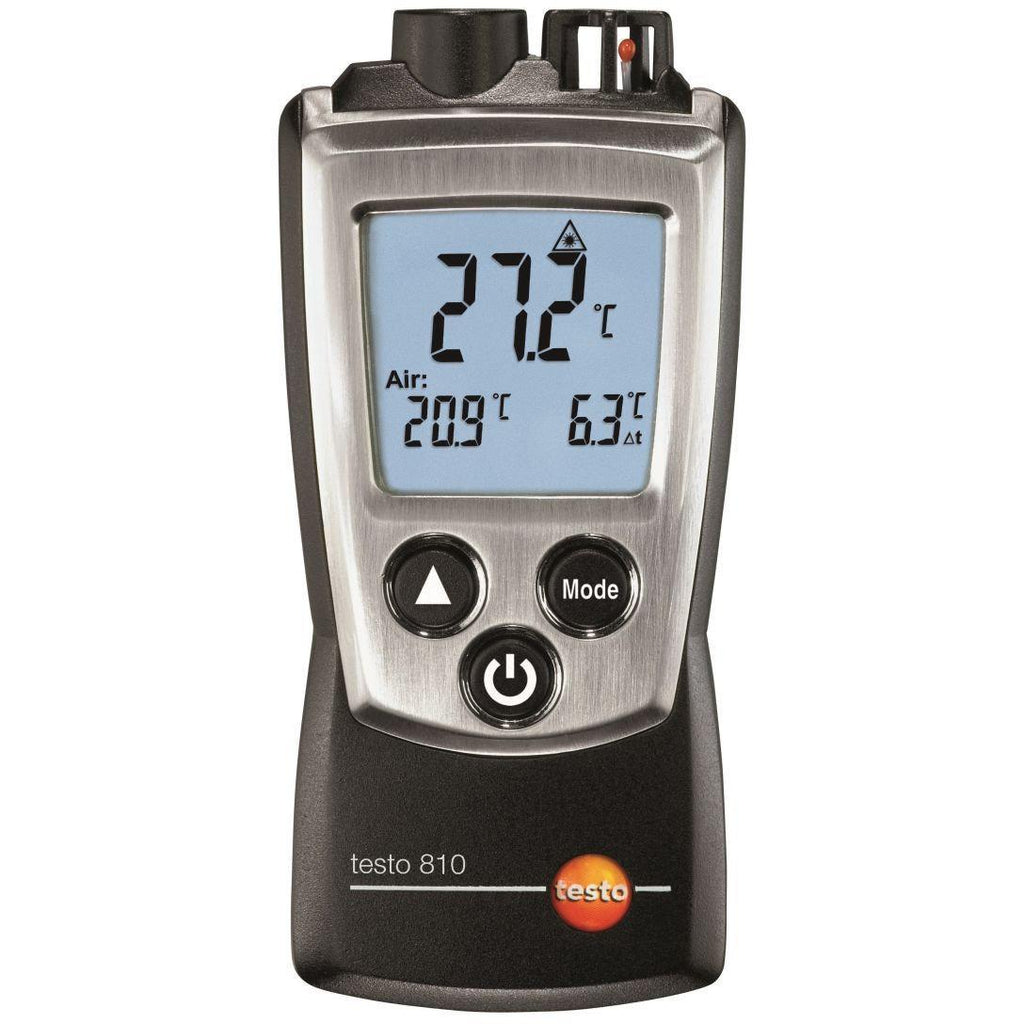

Testo 810 Pocket-Sized Temperature Measuring Instrument 0560 0810-Thermometer-Testo-Cool Tools HVAC-R
Testo 810 Pocket-Sized Infrared Thermometer - 0560 0810
  • SKU: 0560 0810

Testo 810 Pocket-Sized Infrared Thermometer - 0560 0810

GST included.

    The Testo 810 is a 2-in-1 infrared thermometer that simultaneously measures ambient air and surface temperature via infrared sensors at the touch of a button.

    For example, the testo 810 thermometer can take a non-contact surface temperature of a radiator, or air vent and compare it with the air temperature of the room at the same time.

    The testo 810 features a 1-point laser sighting and 6:1 optics ratio, it's also very compact, convenient and easy to operate.


    • Thanks to its handy design, the testo 810 is quickly to hand and easy to stow, for example in a trouser pocket.
    • The infrared measurement is carried out with a 1-point laser measurement spot marking and 6:1 optics.
    • The emissivity can be individually set depending on the application, and with the help of the min./max. function, the minimum and maximum values are shown in the display.
    • Handy pocket-sized combo instrument for non-contact measurement of the surface temperature and air temperature measurement.
    • 1-point laser measurement point marking and 6:1 optics Hold-function, display of max./min. values and the difference between air and surface temperature.
    • Settable emissivity and display illumination
    Functions and applications for the Testo 810 infrared thermometer

    The Testo 810 2in1 IR thermometer measuring instrument is extremely well suited to use in heating, ventilation and air conditioning technology. At the touch of a button, you can measure the surface temperature of radiators, air vents, or windows and compare these to the air temperature.

    The compact size of the infrared thermometer means it offers the advantage of being easy to store in your pocket and is immediately to hand for taking measurements. When measuring surface temperatures, you can mark the required spot with the integrated 1 point laser to achieve a specific measurement. The 6:1 optics of the infrared temperature measuring instrument is primarily suitable for measurements at closer to medium distances.

    The infrared thermometer emission level can also be individually set. This allows you to adjust it to the respective material properties of the surface being measured, as well as achieve the best measurement results. The integrated air temperature sensor is also highly reliable: this is an NTC temperature sensor that measures the air temperature with complete accuracy.

    Other practical features of the infrared thermometer are the min./max. display and the hold function (to record measuring values). A protective cap and belt pouch (included in the scope of delivery) add to the safety of the infrared thermometer.


    • Testo 810 infrared thermometer with integrated NTC temperature sensor
    • Protective cap
    • Belt pouch
    • Batteries
    • Calibration protocol


    • Temperature - NTC
        • Measuring range: -10 to +50 °C
        • Accuracy: ±0.5 °C
        • Resolution: 0.1 °C
        • Measuring rate: 0.5 s
    • Temperature - Infrared
        • Measuring range: -30 to +300 °C
        • Accuracy:
          ±2.0 °C (-30 to +100 °C)
          ±2 % of mv Remaining Range
        • Measuring rate: 0.5 s
        • Infrared resolution: 0.1 °C
    • Operating temperature: -10 to +50 °C
    • Battery type: 2 AAA micro batteries
    • Battery life: 50 h (average, without display illumination)
    • Protection class: IP40
