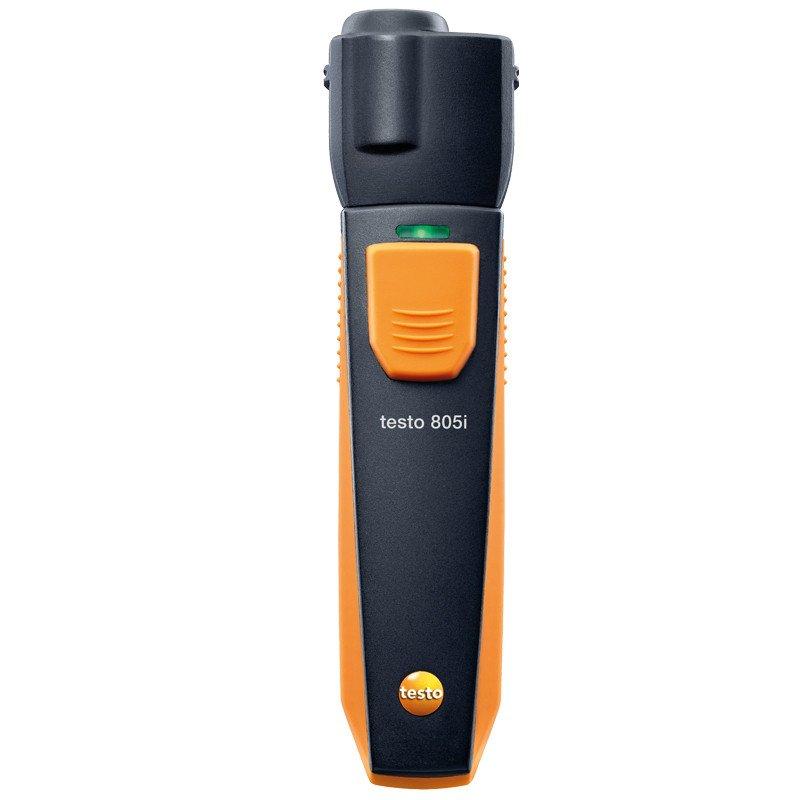

Testo 805i - Smart Infrared-Thermometer operated with your smartphone - 0560 1805

Testo

0560 1805

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
FAQ

Carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.

  • Non-contact infrared measurement of surface temperature.
  • Easy selection of emission level via stored materials list.
  • Highly visible marking of the measuring spot thanks to 8-point laser.
  • Image documentation with readings and measuring spot marking.

The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

FEATURES AND CAPABILITIES

  • Diffractive optic as laser marker (circle).
  • Picture with temperature marking can be saved in App for analysis.
  • Identify mold risk in combination with ambient humidity measurement.
  • Report creating and transfer via smartphone.

Documentation including images via App on a smartphone/tablet

With the testo Smart Tools App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould. Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.

System requirements:

  • iOS 8.3 or later
  • Android 4.3 or later
  • Bluetooth 4.0

WHAT'S INCLUDED?

  • testo 805i infrared thermometer with smartphone operation
  • Batteries
  • Calibration protocol

SPECIFICATIONS

Technical Data

Instrument Sensor

Infrared

Measuring range

-30 to +250 °C

Accuracy ±1 digit

±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±2 °C (-20 to -0.1 °C)

±2.5 °C (-30 to -20.1 °C)

Resolution

0.1 °C



General Technical Data

Storage temperature

-20 to +60 °C

Operating temperature

-10 to +50 °C

Battery type

3 micro batteries AAA

Battery life

30 hrs

Optics

10:1

Laser marking

Diffractive optics (laser circle)

Dimensions

140 x 36 x 25 mm

Emissivity

0.1 to 1.0 adjustable
