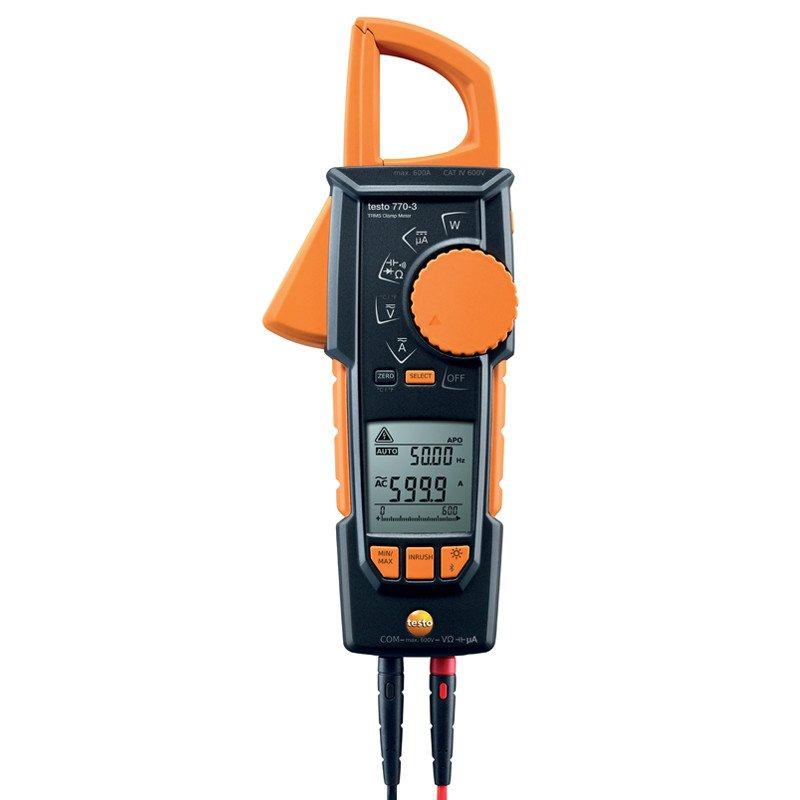

Testo 770-3 Clamp Meter with Bluetooth - 0590 7703

Testo

0590 7703

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
Electrical Range Brochure

Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism enables maximum precision. As the most high-performance model in the clamp meter family, it offers many additional functions for your challenging daily tasks, such as the Bluetooth interface.

The testo 770-3 cable-grabTM clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.

In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. And, as well as measuring electrical parameters, you can also check temperatures with the integrated temperature adapter for type K thermocouples.

The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. The Bluetooth interface is also particularly practical, enabling you to connect other instruments to the clamp meter.

FEATURES AND CAPABILITIES

  • Measuring functions for starting current on electric motors and μA measurements
  • Fully retractable pincer arm to make your work easy
  • Auto AC/DC and large two-line display
  • Temperature adapter for type K thermocouples

WHAT'S INCLUDED?

  • Testo 770-2 TRMS clamp meter including battery
  • 1 set of measuring cables (0590 0010)
  • 1 x adapter for thermocouples type K
  • Instruction manual

SPECIFICATIONS

Technical Data

testo 770-1

testo 770-2

testo 770-3

True RMS

YES

YES

YES

Basic accuracy

0.8 %

0.8 %

0.1 %

Voltage measuring range

1 mV to 600 V AC/DC

1 mV to 600 V AC/DC

1 mV to 600 V AC/DC

Current measuring range

0.1 to 400 A AC/DC

0.1 to 400 A AC/DC

0.1 to 600 A AC/DC

Power measurement

-

-

YES

μA measuring range

-

0.1 to 400 μA AC/DC

0.1 to 400 μA AC/DC

Resistance measuring range

0.1 Ω to 40 MΩ

0.1 Ω to 40 MΩ

0.1 Ω to 60 MΩ

Frequency measuring range

0.001 Hz to 10 kHz

0.001 Hz to 10 kHz

0.001 Hz to 10 kHz

Capacitance measuring range

0.001 μF to 100 μF

0.001 μF to 100 μF

0.001 μF to 60,000 μF

Temperature measuring range

-

-20 to +500 °C

-20 to +500 °C

Bluetooth & testo
Smart Probes App

-

-

YES

Continuity testing

YES

YES

YES

Diode test

YES

YES

YES

Display (counts)

4,000

4,000

6,000

Measurement category

CAT IV 600 V
CAT III 1,000 V

CAT IV 600 V
CAT III 1,000 V

CAT IV 600 V
CAT III 1,000 V

Operating temperature

-10 to +50 °C

-10 to +50 °C

-10 to +50 °C

Storage temperature

-15 to +60 °C

-15 to +60 °C

-15 to +60 °C

Dimensions (L x W x H)

243 x 96 x 43 mm

243 x 96 x 43 mm

243 x 96 x 43 mm

Weight

378 g

378 g

378 g

Authorizations

CSA, CE

CSA, CE

CSA, CE

Standards

EN 61326-1,
EN 61140

EN 61326-1,
EN 61140

EN 61326-1,
EN 61140

AUTHORISED RETAILER

Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

SCROLL UP AND "ADD TO CART" TODAY.
