Testo 760-1 digital multimeter-Electrical Testing-Testo-Cool Tools HVAC-R
Testo 760-1 Digital Multimeter - 0590 7601
Testo 760-1 Digital Multimeter - 0590 7601
Testo 760-1 Digital Multimeter - 0590 7601
  • SKU: 0590 7601

Testo 760-1 Digital Multimeter - 0590 7601

$246.95
GST included.
    DESCRIPTION
    DOWNLOAD BROCHURE
    Electrical Range Brochure

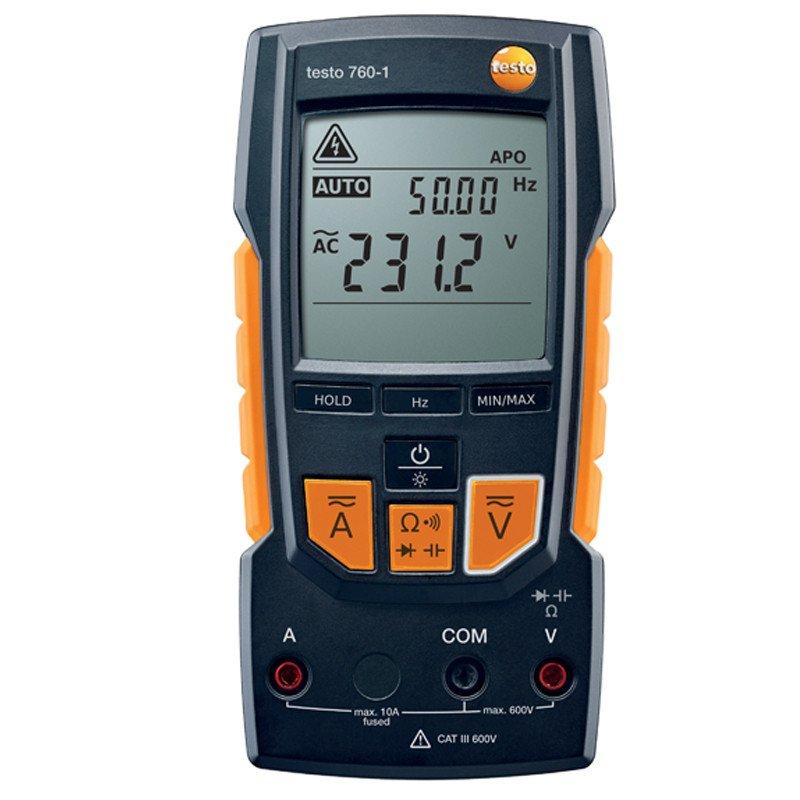

    No dial, no mistakes. The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.

    When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter that sets new standards in terms of reliability.

    In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.

    The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.


    FEATURES AND CAPABILITIES

    • Easy, reliable operation through automatic measurement parameter detection
    • Suitable for almost all electrical measuring tasks
    • Prevents incorrect settings
    • Clear, illuminated display

    WHAT'S INCLUDED

    • Testo 760-1 multimeter including batteries
    • 1 set of measuring cables (0590 0010)
    • Calibration protocol
    • Instruction manual

    SPECIFICATIONS

    Technical Data

    testo 760-1

    testo 760-2

    testo 760-3

    True RMS

    -

    YES

    YES

    Basic accuracy

    0.8 %

    0.1 %

    0.1 %

    AC/DC voltage measuring range

    0.1 mV to 600 V

    0.1 mV to 600 V

    0.1 mV to 1,000 V

    AC/DC current measuring range

    1 mA to 10 A

    0.1 μA to 10 A

    0.1 μA to 10 A

    Resistance measuring range

    0.1 to 40 MΩ

    0.1 to 60 MΩ

    0.1 to 60 MΩ

    Frequency measuring range

    0.001 Hz to 512 kHz

    0.001 Hz to 30 MHz

    0.001 Hz to 60 MHz

    Capacitance measuring range

    0.001 nF to 100 µF

    0.001 nF to 30,000 µF

    0.001 nF to
    60,000 μF

    Temperature measuring range

    -

    -20 to +500°C

    -20 to +500°C

    Continuity testing

    YES

    YES

    YES

    Diode test

    YES

    YES

    YES

    Display (counts)

    4,000

    6,000

    6,000

    Overvoltage category

    CAT4/300 V
    CAT3/600 V

    CAT4/600 V
    CAT3/1,000 V

    CAT4/600 V
    CAT3/1,000 V

    Protection class

    IP64

    IP64

    IP64

    Operating temperature

    -10 to +50°C

    -10 to +50°C

    -10 to +50°C

    Storage temperature

    -15 to +60°C

    -15 to +60°C

    -15 to +60°C

    Dimensions (L x W x H)

    167 x 84 x 45 mm

    167 x 84 x 45 mm

    167 x 84 x 45 mm

    Weight

    340 g

    340 g

    340 g

    Authorizations

    CSA, CE

    CSA, CE

    CSA, CE

    Standards

    EN 61326-1

    EN 61326-1

    EN 61326-1
