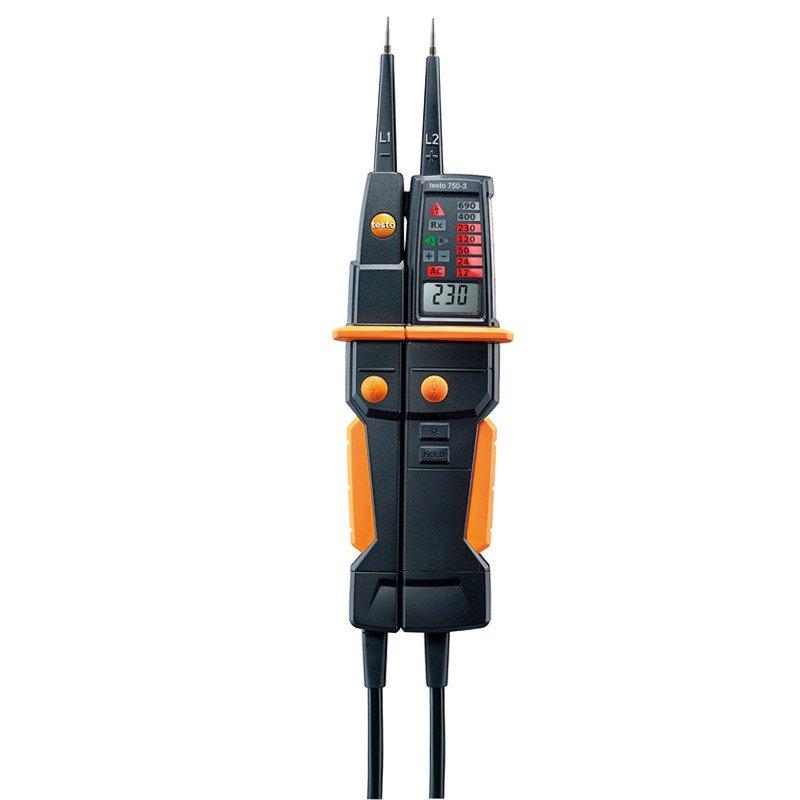

Testo 750-3 Voltage Tester - 0590 7503
0590 7503
$254.00 inc GST
Estimated Delivery Between and .
PRODUCT DESCRIPTION
DOWNLOAD BROCHURE
Electrical Range Brochure
The testo 750-3 voltage tester is the most high-performance model in Testo's convenient and reliable voltage tester family. In addition to the unique fibre-optic technology, the single pole voltage testing, the torch for measuring point illumination and the all-round LED display, it also has an LC display where the value currently being measured is shown.
The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing.
The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
FEATURES AND CAPABILITIES
- Clear, patented all-round LED display
- LC display showing the reading
- RC trigger function and vibrating load buttons
- In accordance with DIN EN 61243-3:2011 and CAT III
WHAT'S INCLUDED?
- Testo 750-3 voltage tester
- Batteries
- Measuring tip protector
- Measuring tip caps
- Calibration protocol
- Instruction manual
SPECIFICATIONS
Technical Data |
testo 750-1 |
testo 750-2 |
testo 750-3 |
|
Voltage testing |
12 to 690 V |
12 to 690 V |
12 to 690 V |
|
Continuity testing |
< 500 kΩ |
< 500 kΩ |
< 500 kΩ |
|
Rotating magnetic field testing |
100 to 690 V at |
100 to 690 V at |
100 to 690 V at |
|
Single pole phase testing |
- |
100 to 690 V at |
100 to 690 V at |
|
RDC/RC trigger function |
- |
YES |
YES |
|
LC display |
- |
- |
YES |
|
Measuring point illumination |
- |
YES |
YES |
|
Overvoltage category |
CAT4/600 V |
CAT4/600 V |
CAT4/600 V |
|
Protection class |
IP 64 |
IP 64 |
IP 64 |
|
Operating temperature |
-10 to +50°C |
-10 to +50°C |
-10 to +50°C |
|
Storage temperature |
-15 to +60°C |
-15 to +60°C |
-15 to +60°C |
|
Dimensions (L x W x H) |
270 x 65 x 35 mm |
270 x 70 x 35 mm |
270 x 70 x 35 mm |
|
Weight |
119 g |
243 g |
243 g |
|
Warranty |
2 years |
2 years |
2 years |
|
Authorizations |
TÜV, CSA, CE |
TÜV, CSA, CE |
TÜV, CSA, CE |
|
Standard |
EN 61243-3:2010 |
EN 61243-3:2010 |
EN 61243-3:2010 |
