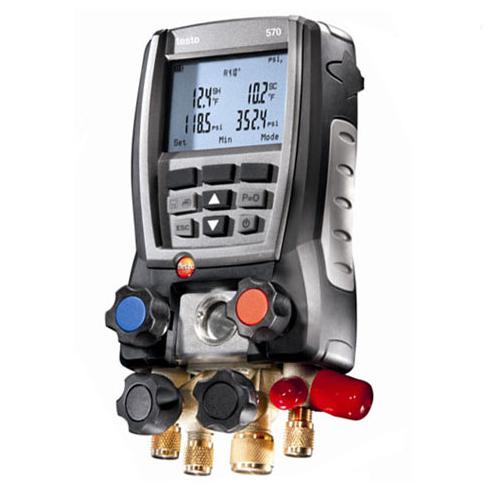

Testo 570-2 Digital Refrigeration Gauge Manifold w/ Data Logging 2 Clamp T/Couples
0563 5702
$1,557.00 $1,650.00 inc GST
Estimated Delivery Between and .
Testo 570-2 Digital Refrigeration Gauge Manifold w/ Data Logging w/ 2 Clamp Thermocouples
Download Brochure
The Testo 570-2 is able to replace a huge range of measuring tools that you would normally need to carry out your work on refrigeration systems and heating pumps all in the one great unit.
The digital manifold gauge can measure, analyse and log pressure, temperature, electricity and vacuum measurements and save all data from the second the meter is switched on to the final fault analysis of a system. All data is kept and stored safely, ready to be sent to your customer.
Included in this kit is the:
- Testo 570-2 digital manifold gauge
- 2-clamp temperature sensor
- USB Cable
- System case
- Calibration protocol
- Includes EasyKool software
- Batteries.
Recommended to purchase with this product:
FEATURES AND CAPABILITIES
- 40 refrigerant profiles stored in the instrument
- Automatic heat pump mode – no need to replace refrigerant hoses
- Real time data measurement and graphical editing with EasyKool software
- Connect testo 552 to record | log Vacuum
- 999 hours of internal memory - clearly-structured, easy-to-follow
- Real time data measurement and graphical editing with optional "EasyKool" software. Shows data in easy-to-understand format. Faults can be detected quicker in case of breakdowns / failures
- Call up and print out protocols and reproduce measurements and call up protocols more easily. Print out data with the testo turbo printer
- 40 refrigerant agents are already stored in the meter and free updates of other refrigerant agents with "EasyKool" software
- Two temperature compensated pressure sensors for quick and reliable high / low pressure plus automatic temperature measurements
- Three temperature connecting points for connectable temperature sensors for simultaneous superheat / subcooling calculations and parallel surrounding temperature measurements, eg. in cold storage rooms
- Integrated vacuum measurements for the evacuation of refrigerant systems / heat pumps - with the Testo 552
- Automatic heat pump mode – no need to replace refrigerant hoses
- Further features including temperature compensated leak-tightness check function and automatic surrounding pressure compensation
- The digital manifold gauge comes with a two clamp temperature sensor which is clamped directly onto the pipe so that the surface temperature can be measured safely and a wide selection of sensors (optional) for oil pressure, electricity and temperature measurements
SPECIFICATIONS
Technical Data |
|
| Storage Temperature | -20 to + 60°C |
| Operating temperature | -10 to +50 °C |
| Battery type | 2 AAA micro batteries |
| Battery life | 40 hr (less with use Bluetooth & Backlit) |
| Dimensions | 265 x 48 x 19 mm |
Instrument Sensor |
|
| Measuring range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C / °F / °R |
Low Pressure Probe Measurement |
|
| Measuring range | -14.7 to 725 psi |
| Accuracy | ±0.5 % fs |
| Resolution | 0.1 psi (0.01 bar) |
| Overload | 870 psi |
High Pressure Probe Measurement |
|
| Measuring range | -14.7 to 725 psi |
| Accuracy | ±0.5 % fs |
| Resolution | 0.1 psi (0.01 bar) |
| Overload | 870 psi |
AUTHORISED RETAILER
Buy with 100% confidence knowing your purchase is backed by the full Manufacturers Warranty. Customer must register product with warranty documents that come with product.
SCROLL UP AND " ADD TO CART " TODAY.
