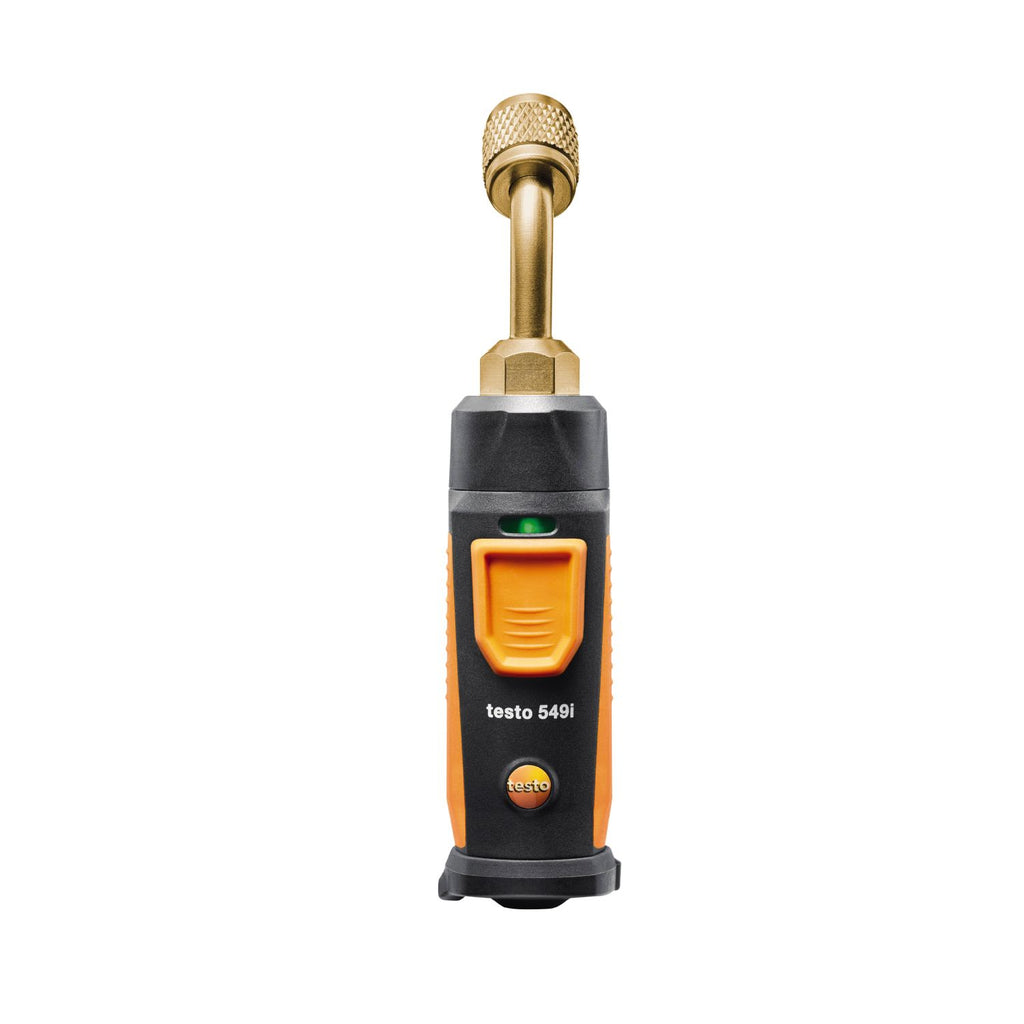

Testo 549i Gen2 - Smart High Pressure Meter operated with your smartphone - 0560 2549 02
0560 2549 02
Sold Out inc GST
Estimated Delivery Between and .
Note: This product is out of stock. Will be back in stock end of March 2022.
Contact Us now to backorder.
PRODUCT DESCRIPTION
DOWNLOAD BROCHURE
FAQ
In conjunction with a smartphone or tablet, the handy testo 549i high-pressure measuring instrument is ideal for carrying out servicing and troubleshooting on air conditioning and refrigeration systems as well as for installing them.
The measuring instrument can be quickly and easily attached directly to the pressure connection. The testo 549i makes it considerably easier to work on pressure connections that are a long distance apart, thanks to wireless connection to a smartphone or tablet. Also practical: since no hoses are needed for the measurements, no refrigerant is lost, or only a very small quantity.
When used in conjunction with the testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.
Testo offers you greater mobility when measuring: used in conjunction with your smartphone or tablet, the handy testo 549i high-pressure gauge is suitable for carrying out wireless servicing and troubleshooting on air conditioning and refrigeration systems, as well as for installing them.
FEATURES AND CAPABILITIES
- Measurement of high and low pressure
- Low refrigerant loss thanks to hoseless application
- Quick and easy installation at the pressure connection with 45° angle
- Measurement data displayed in the form of a graph or table, and sent via testo Smart Probes App
- Problem-free use at measuring points that are a long distance apart – Bluetooth® range up to 100 m
Readings can be viewed conveniently on your terminal device via the testo Smart Probes App. In addition, the App enables automatic calculation of evaporation and condensation temperatures. All measurement data are presented either as a diagram or a table. Finally, the measurement data report can be e-mailed directly as a pdf or Excel file.
*Our tip: Use the testo 549i as a probe in conjunction with the appropriate IAQ measuring instrument from Testo.
System requirements:
- iOS 8.3 or later
- Android 4.3 or later
- Bluetooth 4.0
WHAT'S INCLUDED?
- Testo 549i high-pressure gauge operated via smartphone
- Batteries
- Calibration protocol
SPECIFICATIONS
Technical Data
|
Instrument Sensor |
Pressure |
|
Measuring range |
0 to 60 bar |
|
Accuracy ±1 digit |
0.5 % of measuring range final value |
|
Resolution |
0.01 bar |
|
Connection |
7/16" – UNF |
|
Overload rel. (high pressure) |
+65 bar |
General Technical Data
|
System Compatibility |
requires iOS 8.3 or newer requires Android 4.3 or newer requires mobile end device with Bluetooth 4.0 |
|
Storage temperature |
-20 to +60 °C |
|
Operating temperature |
-20 to +50 °C |
|
Battery type |
3 micro batteries AAA |
|
Battery life |
130 hrs |
|
Measurable life |
CFC, HFC, HCFC, N, H₂O, CO₂ |
|
Radio range |
100 m |
AUTHORISED RETAILER
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
SCROLL UP AND "ADD TO CART" TODAY.
