Testo 417 Large 100mm Vane Anemometer - 0560 4170

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

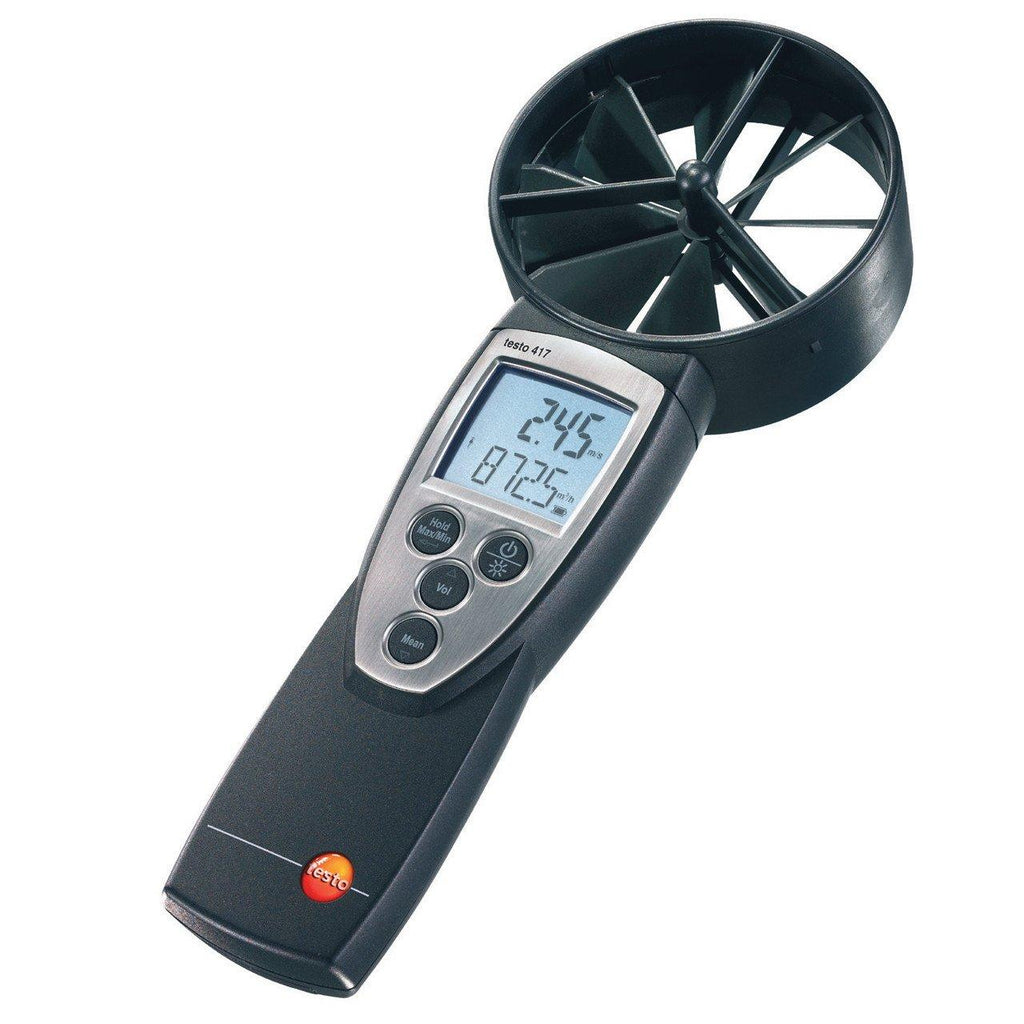

The testo 417 is a anemometer with built-in Ø 100 mm vane to measure flow speed, volume flow and temperature. Volume flow is shown directly in the display. Accurate volume flow calculation thanks to easy input of duct area. In addition, it is easy to switch to the current temperature reading. The flow direction, i.e. drawn in or blowing, is visible in the display. Timed and multi-point mean calculation provide information on mean volume flow, flow speed and temperature readings. The optional funnel set facilitates efficient measurements at ventilator grilles and disc outlets. Min/max values can also be shown in the display. Current readings can be frozen in the display using the Hold function.

• Direction of flow recognition
• Temperature, flow and volume flow measurement
• Multi-point and timed mean calculation
• Max/min values
• Hold button to freeze readings
• Display light
• Auto Off function
• Built-in Ø 100 mm vane

FEATURES AND CAPABILITIES

• 4 in 1 Measurement, Air Flow, Velocity, Volume Flow, Temperature
• Large, backlit, easy to read display
• Auto Hold Function
• Optional Attachable measurement funnels

WHAT'S INCLUDED?

• Testo 417 vane anemometer with integrated 100 mm vane incl. temperature
  measurement
• battery
• Calibration protocol

SPECIFICATIONS

• Velocity - Vane
• Measuring range: +0.3 to +20 m/s
• Accuracy: ±(0.1 m/s + 1.5 % of mv)
• Volume flow
• Measuring range:
  0 to +99999 m³/h
  0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
  0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))

• Temperature - NTC:
• Measuring range: 0 to +50 °C
• Accuracy: ±0.5 °C
• Operating temperature: 0 to +50 °C
• Storage temperature: -40 to +70 °C

• Battery type: 9V block battery, 6F22
• Battery life: 50 h
