Testo 316-2 Multi Gas Leak Detector with Integrated Pump - 0632 3162

Testo

0632 3162

Estimated Delivery Between and .

American express Apple pay Diners club Discover Facebook pay Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The testo 316-2 is extremely user-friendly and ideally suited to fast check measurements thanks to its integrated pump, its optical presentation of the gas concentrations detected, and the integrated rechargeable battery.

Whether it’s for carrying out checks on flanges, fittings or any other places that are typically prone to leaking, the Testo 316-2 gas leak detector provides you with a speedy and sure means of detecting higher concentrations of methane, propane and hydrogen in the surrounding air.

Speedy and sure gas leak detection. The Testo 316-2 provides you with a quick and reliable means of detecting methane, propane and hydrogen in the ambient air. The gas concentration is displayed in the form of an easy-to-read bar and an alarm is triggered when a threshold is crossed.

FEATURES AND CAPABILITIES

  • Measures: Methane, Propane & Hydrogen
  • Quick reaction time with integrated pump
  • Flexible gooseneck sensor for checking hard-to-reach pipes and places.
  • 18-step bar for displaying gas concentration & maximum leakage display
  • Optical and audible alarm with bar display for increasing and dangerous gas concentrations
  • Trend display shows maximum leakage
  • Earphone connection for secure leakage localization in loud surroundings
  • High duration of use thanks to the rechargeable battery

The testo 316-2 gas leak detector. For pinpoint detection of gas leaks
Even if you already know that a pipe is leaking, you normally still have a long way to go before you can actually locate the leak. The Testo 316-2 gas leak detector is just the right tool for carrying out such pinpointing detection.

The detector’s easy-to-read 18-step bar display and maximum leakage reading show the concentration of combustible gas in the surrounding air and lead you quickly and reliably to the source of the leak.

The detector also has an audible alarm that warns you when a threshold is crossed and a headphone jack that allows you to connect earphones for more focused and productive working in loud or distracting environments.

Overview Testo gas leak detectors
Measuring
instrument
testo 317-2 testo 316-1 testo 316-2 testo gas detector testo 316-EX
  The convenient
gas leak detector
for beginners
The detector for
leaks in natural gas
pipes
The gas leak
detector with
integrated pump
for fast check
measurements
Gas detector Gas detector
with
EX-protection
Measuring range
     Methane 100 to
20.000 ppm CH4
100 to
10,000 ppm CH4
10 ppm to 4,0
Vol. % CH4
10 to 999 ppm CH4
0,1 to 4,4 Vol. % CH4
1 ppm to
2.5 Vol. % CH4
     Propane 50 to 10.000 C3H8 - 10 ppm to 1,9
Vol. % C3H8
10 to 999 ppm C3H8
0,1 to 1,9 Vol. % C3H8
1 ppm to
1.0 Vol. % C3H8
     Hydrogen - - 10 ppm to 4,0
Vol. % H2
10 to 999 ppm H2
0,1 to 4,0 Vol. % H2
1 ppm to
2.0 Vol. % H2
Lower response
thresholds
100 ppm CH4
50 C3H8
100 ppm 10 ppm 10 ppm -
1st alarm limit 10.000 ppm CH4
5000 C3H8
(20% LEL)
from 200 ppm CH4
(LED yellow)
200 ppm CH4
100 ppm C3H8
200 ppm H2
- -
2nd alarm limit - from 10.000 ppm CH4
(LED red)
10.000 ppm CH4
5.000 ppm C3H8
10.000 ppm H2
- -
Resolution  - - - 1 ppm / 0,1 Vol. % 1 ppm / 0,1 Vol. %
Display 8 segment trend
display
LED (3 colour) 18 segment bar
display
ppm display -
Battery life 4 h (LR03) > 5 h 6 h > 8 h to 10 h
Other features audible signal Semi-conductor
sensor
Earphone socket · extendable probe
· Inherently safe
sensor according to
DMT
Protection class
IP54
EU guideline
94/9/EG (ATEX)
2004/108/EG
EX-protection II 2G
EEx ib IIC T1 (Ex
Zone 1)

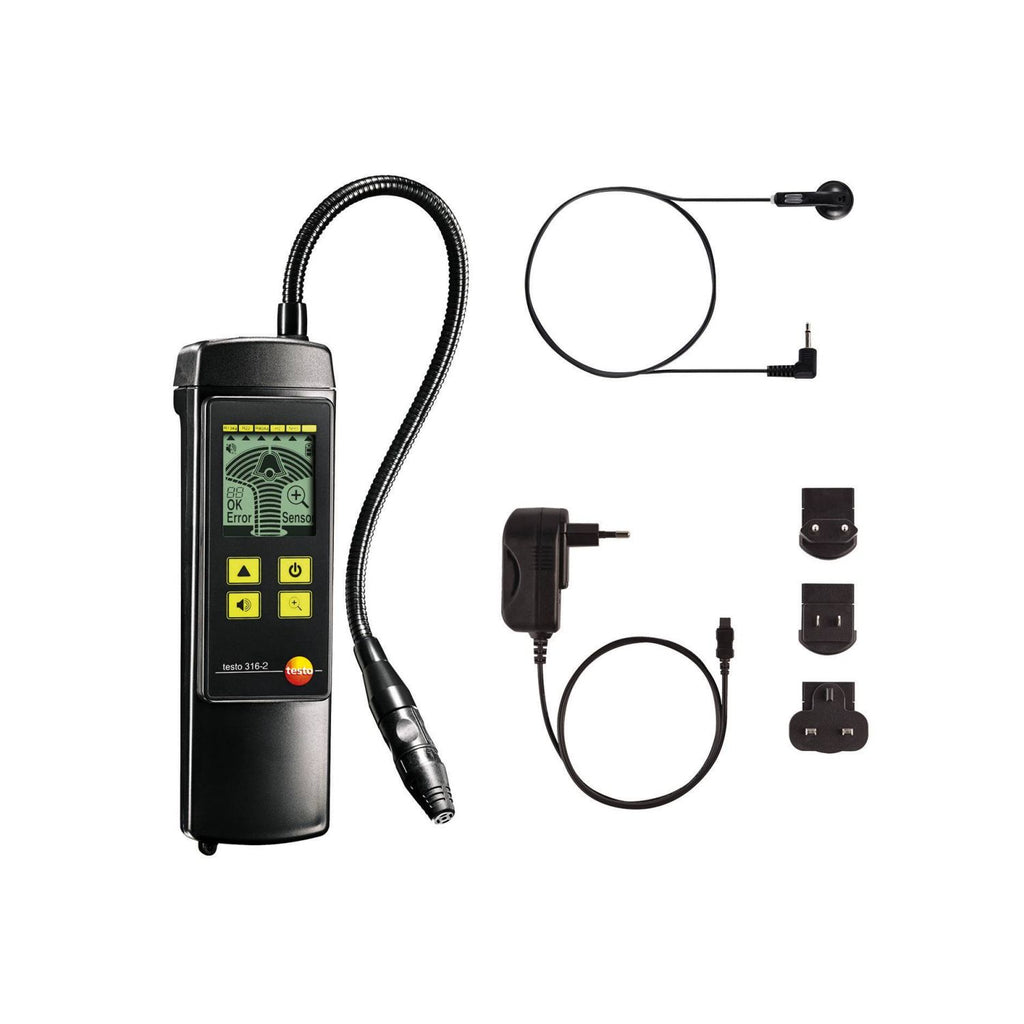

WHAT'S INCLUDED?

  • Testo 316-2 gas leak detector
  • Power adaptor
  • Earphones

SPECIFICATIONS

Sensor
  Methane (CH₄) Propane (C₃H₈) Leak detection H₂
Measuring range 10 ppm to 4.0 Vol.% 10 ppm to 1.9 Vol.% 10 ppm to 4.0 Vol.%
Lower response threshold 10 ppm 10 ppm 10 ppm
1st alarm limit 200 ppm 100 ppm 200 ppm
2nd alarm limit 10000 ppm 5000 ppm 10000 ppm



General technical data
Operating humidity 20 to 80 %RH
Reaction time t₉₀ < 2 s
Dimensions 190 x 57 x 42 mm (without sensors)
Operating temperature -5 to +50 °C
Storage temperature -25 to +60 °C
Heat up time 60 s
Battery type NiMH battery
Battery life 6 h
Display type 18_segment_bar_display
Weight 348 g
