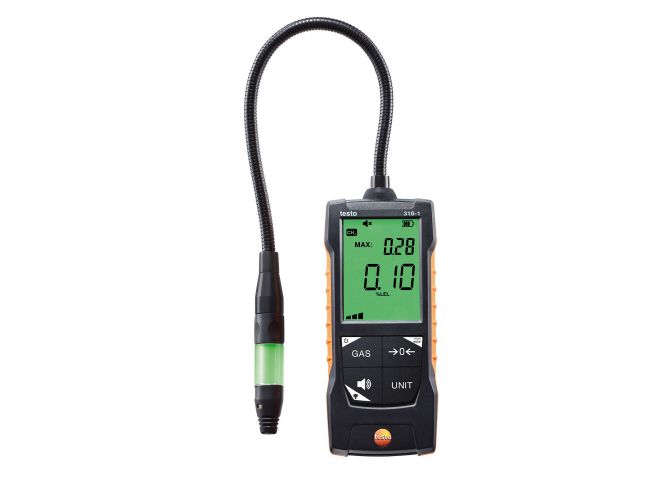

Testo 316-1 Gas Leak Detector can effectively help you locate gas leaks easily and precisely. The multicolour LED on the sensor head and the multicolour display, as well as the flexible probe for hard-to-reach places, support you intuitively and precisely in leak detection.
No training is needed thanks to the intuitive traffic-light scale on the head and the display illumination. Identifying and finding leaks or even reading off concentration values in ppm or %LEL (lower explosive limits) are all extremely easy.
| Measurement Parameters | ppm, vol% , % LEL |
| Detectable Gases | Methane, Propane, Hydrogen, Butane |
| Measuring Range |
Methane (CH4): 50 ppm to 4.0 vol.% Propane (C3H8): 50 ppm to 1.9 vol.% Hydrogen (H2): 50 ppm to 4.0 vol.% Butane (C4H10): 50 ppm to 1.5 vol.% |
| Resolution | 1 ppm 0.01 VOL% 1% LEL |
| Response Time | < 2 sec |
| Leak Alarm | 3-colour LED on the sensor head 3-colour display backlight Acoustic |
| General technical data | |
| Operating temperature | -20 to +50 °C |
| Operating Humidity |
0 to 80%RH |
| Storage Temperature | -20 to +50 °C |
| Battery life | >15 h |
| Dimension | 150mm x 66.5mm x 37.5mm Length with Gooseneck Arm 545 mm |
| Weight | 415g |
