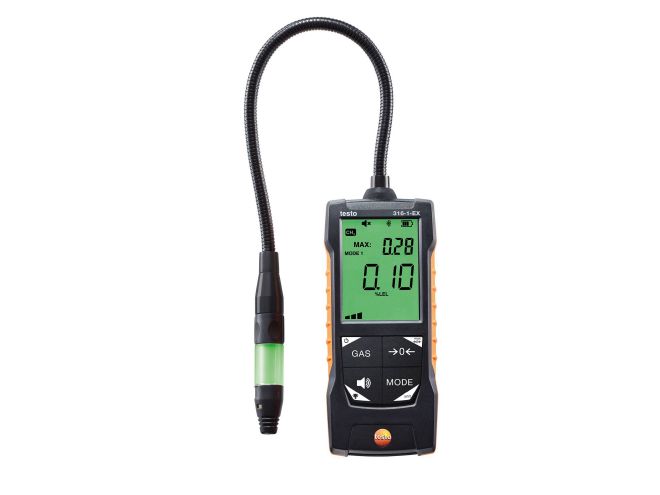

Testo 316-1-EX is a professional instrument for the fuel gas sector and for increased safety requirements. You can carry out leak detection easily and safely, even on larger systems and under increased safety requirements. Certified explosion-proof thanks to explosion protection (ATEX, EU/EFTA). Additional functions such as fine mode and auto-identification of the typical gas groups make leak detection even easier. App integration for easy documentation.
|Measurement Parameters||ppm, vol% , % LEL|
|Detectable Gases||Methane, Propane, Hydrogen, Butane|
||Methane (CH4): 50 ppm to 4.0 vol.%
Propane (C3H8): 50 ppm to 1.9 vol.%
Hydrogen (H2): 50 ppm to 4.0 vol.%
Butane (C4H10): 50 ppm to 1.5 vol.%
|Response Time||< 2 sec|
|Leak Alarm||3-colour LED on the sensor head
3-colour display backlight
|General technical data|
|Operating temperature||-5 to +50 °C|
||0 to 80%RH
|Storage Temperature||-20 to +50 °C
|Charging Temperature||-5 to 45% °C|
|EX-protection||ATEX II 2 G Ex ib IIC T1 Gb|
USB charger (standard) with connection via microB
|Dimension||150mm x 66.5mm x 37.5mm
Length with Gooseneck Arm 545 mm
