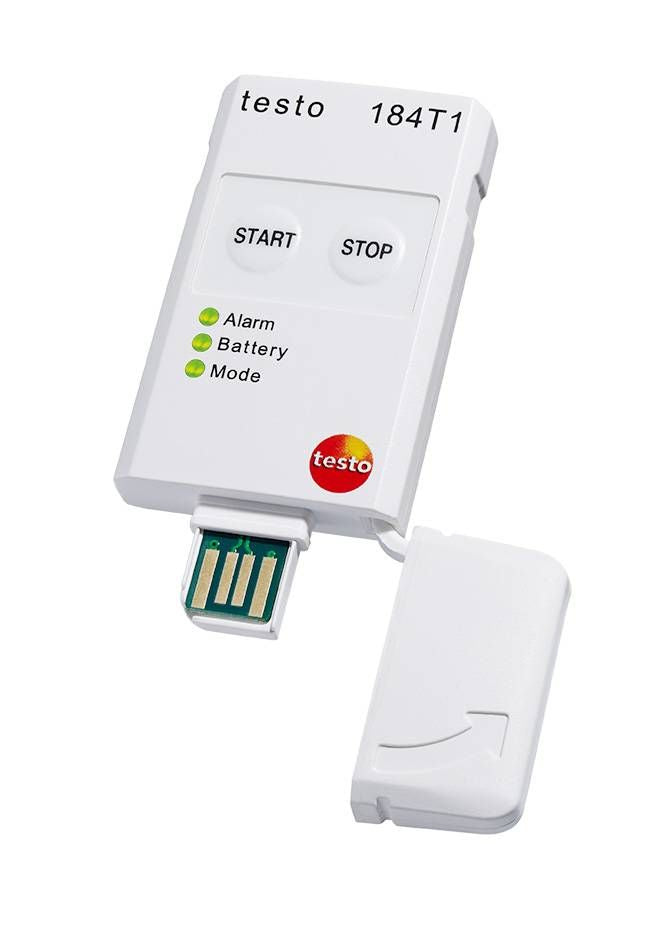

Testo 184 T1 USB Temperature Data Logger - 0572 1841

Testo

0572 1841

Estimated Delivery Between and .

American express Apple pay Diners club Discover Facebook pay Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

With the testo 184 data loggers, you monitor every step of your cold chain in the transport of sensitive goods by rail, in the air or on the road.

With the temperature data loggers testo 184 T1, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over a maximum period of 90 days.

At their destination, a glance at the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T1: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.

The measurement value store of the temperature data logger testo 184 T1 has a capacity of 16000 measurement values. The measurement rate is freely selectable from 1 min to 24 h.

testo 184 T1 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company and ensures adherence to the norms through internal audits as well as accredited external audits.

FEATURES AND CAPABILITIES

  • All in one temperature data logger: PDF measurement data, configuration file, acceptance test certificate 3.1 according to DIN ISO 10204 and instruction manual
  • Operating time 90 days
  • Immediate creation of a PDF report directly after connection to a computer
  • Complies with GxP, 21 CFR Part 11, HACCP and EN 12830



All advantages at a glance:
1. Clear alarm indication: A glance at the LEDs is enough to know whether limit values have been violated during transport.

2. Easiest operation: testo 184 T1 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.



3. Easiest configurations: In each testo 184 T1, a configuration file is stored, with which the configuration of the testo 184 T1 is childsplay – no download, no installation, no user interface and no additional costs.



4. Convenient readout: A PDF report with the transport data is created immediately on connection of the testo 184 T1 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.



5. Mobile readout/printout on site: Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.

6. IT-safe: The testo 184 T1 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.

APPLICATIONS

Ideal for the following applications:

  • Monitoring and documentation of temperature in food, pharmaceutical, transport of flowers or any kind of logistical services.

WHAT'S INCLUDED?

  • Temperature data logger testo 184 T1, including acceptance test certificate 3.1 according to DIN ISO 10204 (stored in testo 184 T1)
  • Battery
  • 1 piece double-sided adhesive tape for easy attachment of the data logger

SPECIFICATIONS

Sensor
Measurement
parameter
Temperature
Temperature sensor NTC sensor, internal
Measuring range -35 to +70 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Reaction time t₉₀ = 30
Measuring rate 1 min to 24 h


General technical data
  testo 184 T1 testo 184 T2 testo 184 T3
Power supply Lithium battery, non-exchangeable Lithium battery, non-exchangeable Lithium battery CR2450 3V,
exchangeable
Operating time 90 days 150 days Unlimited
Battery life - - 500 days (at +25 °C and 15 mins
measurement rate).
Memory 16,000 readings 40,000 readings 40,000 readings
Alarm identification by LEDs by LEDs and display by LEDs and display
Dimensions 33 x 9 x 74 mm 44 x 12 x 97 mm 44 x 12 x 97 mm
Protection class IP67
Operating temperature -35 to +70 °C
Storage temperature -55 to +70 °C
Tests, certificates - EN 12830-certified (C,D)
- Certified by HACCP International
- testo ComSoft CFR software (V4.3 SP2 or higher) compatible with CFR 21 Part 11
