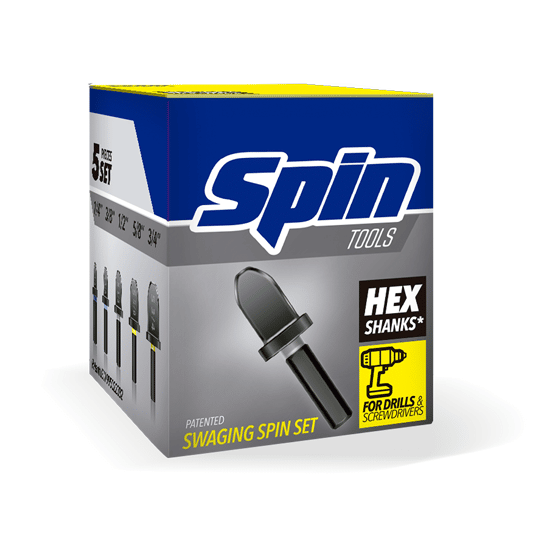

SpinTools SPIN Swaging Set S5000

S5000 Ultimate Swaging Tools

Check out these revolutionary tools right now! Using innovative technology, the ORIGINAL S5000 SPIN Swaging Set is a new concept in HVAC tools, ready to quickly swage any copper or aluminium tube, in just a few seconds.

Intermediate Set of 5-piece sets with the 4 most common HVAC tubing diameters, plus 1 “medium-duty” piece for larger tubes found in the field.

S5000 SPIN Swaging Set is designed for the most common tubing diameters in HVAC, and it’s recommended for use with both soft and hard copper. The high-temperature method preserves the copper’s/aluminium’s malleability while performing the swage, preventing cracks and leaks. The S5000 SPIN Swaging Set allows you to connect tubes with ease and without the use of extra fittings; sleeves and unions, turning potential waste into actual profit. To top that, you can swage with the S5000 SPIN Swaging Set in just 5 seconds!

FEATURES

• Suitable to use with hard copper you just need to preheat the copper
• Works with soft copper creating fewer cracks
• Compatible with 1/4″ - 3/8″ - 1/2″ - 5/8″ - 3/4" tube sizes
• Flawless swages in five seconds
• A reusable tool with a long-life design
• Universal drill compatibility
• Innovative new technology
• Heat by friction

WHAT'S INCLUDED

• 5 x Swaging Pieces 1/4″, 3/8″, 1/2″, 5/8″ & 3/4"
• 1 x Carry Case
• 1 x Use Instructions
• 12-month warranty

SPECIFICATIONS

• Model: S5000
• Copper tube sizes 1/4″ - 3/8″ - 1/2″ - 5/8″ - 3/4"
• Material: Steel, Alloy
• Country of Origin: Brazil
• Maximum tube wall thickness: 0.8mm (1mm for 5/8th)

To perform the swage on copper/aluminium tubing, simply attach the corresponding SPIN Tool size to a drill. Because they perform their job using high temperatures and friction, no clamping tools or holders are necessary. No more struggling with the swaging tool. The drill provides strength, not your hands!

All SPIN Tools are specifically designed to work with drills and/or screwdrivers, with a minimum of 1,800 RPM and 500 watts, for corded drills, or superior and 1,800 RPM and 18V, or superior, for cordless drills. Using the SPIN Tools with a less powerful equipment tool than suggested, may result in decreased and low-quality performances.

The Swaging SPIN Tools are designed for copper tubing sizes of ¼ ”, ⅜” and ½” with wall thicknesses up to 0.8mm; & 1.0mm for a tubing diameter of ⅝”. Using the Swaging Spin Tools on ANY other diameter than the recommended might cause undesirable deformation and assembling issues.
