Robinair VacuMaster Two Stage 118 L/M R32 Vacuum Pump 15706
  • SKU: 15706

Robinair VacuMaster Two Stage 118 L/M R32 Vacuum Pump 15706

GST included.

    Robinair VacuMaster™ R1234YF / R32 Spark Proof 5 CFM Vacuum Pump

    If space is at a premium in your work vehicle then Robinair's VacuMaster™ is perfect for the service technician on the move due to its lightweight and small size. Robinair's VacuMaster™ Economy Vacuum Pumps have a high pumping capacity rating for fast, thorough evacuation.

    • Performance tested to meet Robinair's high standards
    • Power and capacity for a wide range of service applications
    • High CFM rating for fast, thorough evacuation
    • Two-stage rotary vane design

    Built tough with a two-stage rotary vane design this can easily be the only vacuum pump you'll need at a great price with the performance to match.

    Robinair pumps are engineered specially to meet the needs of the kind of A/C work you’re doing today, and to give you trouble-free operation.

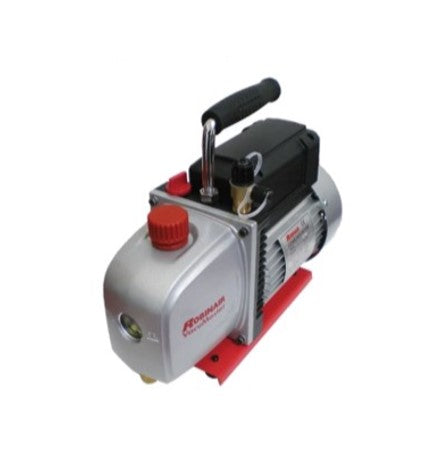

    ***Note: Pump does not come with an analog vacuum gauge or solenoid valve as pictured. Image is a superseded model***



    • Spark Proof Pump – For use with R1234 YF / R32 (Class 2L mildly flammable refrigerants)
    • Two-stage Design – Cleans the system more thoroughly with a second stage vacuum, leading to a deeper, ultimate vacuum level
    • Heavy-Duty Motor – 1/2 HP motor featuring a rotary vane, sealed bearing, high torque design for easy startup and efficient operation
    • New Aluminum Reservoir Design – New cast aluminum reservoir reduces weight and creates a strong and durable pump
    • Brass Intake – Brass intake valve with 1/4" and 3/8" flare and 1/2" ACME adapters complete with tethered caps
    • Quick Oil Changes – Oil fill port and drain plug are easily accessible for fast and complete oil changes
    • Easy View Sight Glass – Clean oil is the key to efficient pump operation; oil colour and level are easy to see with the oversized sight glass
    • Free Air Displacement 118L/M



    Free air displacement 118 liters/minute (5 CFM)
    Factory micron rating 25 microns
    Stages 2
    Intake fitting 1/4" and 1/2" ACME 3/8" x 1/2" ACME adapter
    Oil capacity 300 ml
    Motor size 1/2 hp
    Frequency 50Hz
    Power Supply 240V
    Weight 10.5kg
    Dimensions 240mm x 138 mm x 336 mm
    Warranty One Year
