Robinair VacuMaster Two Stage 71 L/M Vacuum Pump 15301
  • SKU: 15301

Robinair VacuMaster Two Stage 71 L/M Vacuum Pump 15301

$418.44 $465.79
GST included.
    DESCRIPTION

    Robinair VacuMaster™ High Performance 5 CFM Vacuum Pump

    If space is at a premium in your work vehicle then Robinair's VacuMaster™ is perfect for the service technician on the move due to its lightweight and small size. Robinair's VacuMaster™ Economy Vacuum Pumps have a high pumping capacity rating for fast, thorough evacuation.

    • Performance tested to meet Robinair's high standards
    • Power and capacity for a wide range of service applications
    • High CFM rating for fast, thorough evacuation
    • Two-stage rotary vane design

    Built tough with a two-stage rotary vane design this can easily be the only vacuum pump you'll need at a great price with the performance to match.

    Robinair pumps are engineered specially to meet the needs of the kind of A/C work you’re doing today, and to give you trouble-free operation.

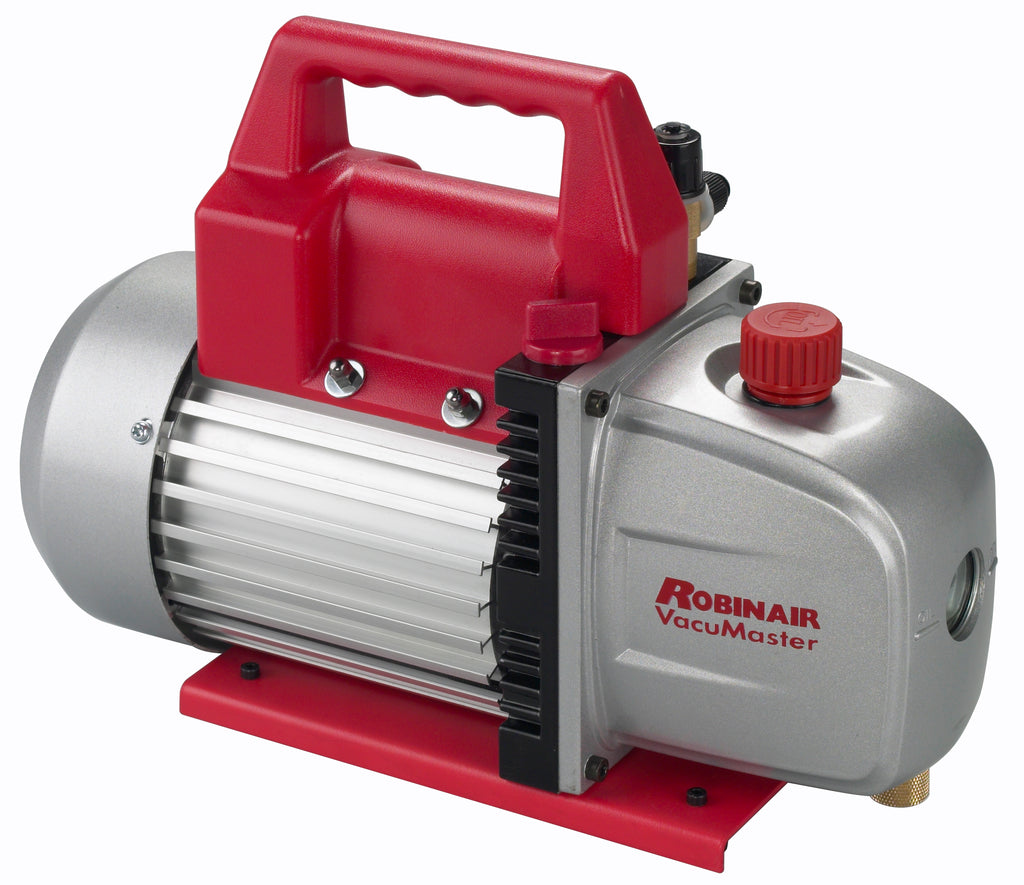

    ***Note: Pump does not come with an analog vacuum gauge or solenoid valve as pictured. Image is a superseded model***



    FEATURES

    • 2-stage rotary vane design – Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
    • Heavy-duty motor – Sealed bearing, high-torque design for easy startup and efficient operation
    • Angled oil drain valve – faster, more complete draining
    • Easy view sight glass – Easily see oil levels
    • Top oil fill port – Better access when refilling oil
    • Cast aluminum body – Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
    • Quality – Performance-tested to meet Robinair’s quality, durability and longevity standards
    • Intake screen – Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
    • Brass intakes – Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
    • Multi-use – Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
    • Not for use with ammonia or lithium bromide systems
    • Not for use with A4L or other flammable refrigerants



    SPECIFICATIONS

    Free air displacement 71 liters/minute (3 CFM)
    Factory micron rating 35 microns
    Stages 2
    Intake fitting 1/4" MFL and 1/2" MFL 3/8" FFL x 1/2" ACME adapter
    Oil capacity 220 ml (7.5 oz)
    Motor size 1/3 hp
    Voltage 220V 50Hz
    Weight 12.5 kg (28 lbs.)
    Dimensions 255 mm x 123 mm x 336 mm (10" H x 5" W x 13" L)
    Uses Up to 30 tons (105 kW) Residential A/C, panel trucks & RVs
    Cord Length 1.82m(6’)
    Warranty One Year
