Robinair Vacuum Pump 2-Stage 170 litres /min 15701-S2-Vacuum Pumps-Robinair-Cool Tools HVAC-R
  • SKU: 15701-S2

Robinair VacuMaster Two Stage 170 L/M Vacuum Pump 15701-S2

GST included.

    Robinair VacuMaster™ High Performance 6.5 CFM Vacuum Pump

    If space is at a premium in your work vehicle then Robinair's VacuMaster™ is perfect for the service technician on the move due to its lightweight and small size. Robinair's VacuMaster™ Economy Vacuum Pumps have a high pumping capacity rating for fast, thorough evacuation.

    • Performance tested to meet Robinair's high standards
    • Power and capacity for a wide range of service applications
    • High CFM rating for fast, thorough evacuation
    • Two-stage rotary vane design

    Built tough with a two-stage rotary vane design this can easily be the only vacuum pump you'll need at a great price with the performance to match.

    Robinair pumps are engineered specially to meet the needs of the kind of A/C work you’re doing today, and to give you trouble-free operation.

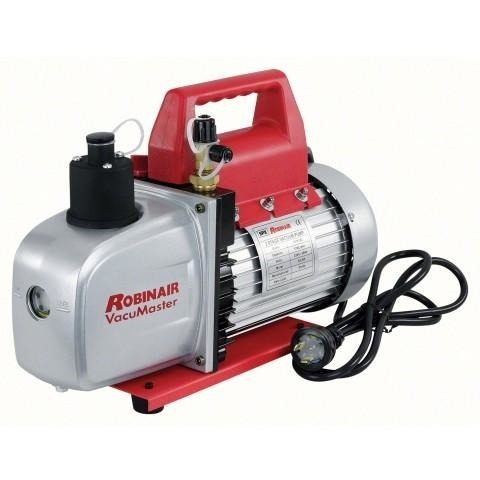

    ***Note: Pump does not come with an analog vacuum gauge or solenoid valve as pictured. Image is a superseded model***



    • Two-stage Design – Cleans the system more thoroughly than a single-stage pump; the second stage starts pumping at a lower pressure so you can pull a deeper, ultimate vacuum.
    • Oil Drain Valve – Positioned at the bottom of the oil reservoir and angled for faster, more complete draining.
    • Oil Fill Port – Makes adding oil simple since the port is accessible from the front or either side. The sight glass on the front of the pump shows you when enough oil has been added.
    • Heavy-Duty Motor – High torque design for easy startup and efficient operation.
    • Die-Cast Aluminum Housing – Cast aluminum housings make the pumps lightweight but durable.



    Free air displacement 170 liters/minute (6.5 CFM)
    Factory micron rating 25 microns
    Stages 2
    Intake fitting 1/4" and 1/2" ACME 3/8" x 1/2" ACME adapter
    Oil capacity 590 ml
    Motor size 3/4 hp
    Frequency 50Hz
    Power Supply 240V
    Weight 16.1kg
    Dimensions 270 mm x 145mm x 398 mm
    Warranty One Year
