Robinair Automotive Contaminated Refrigerant Recovery Machine - 25700

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

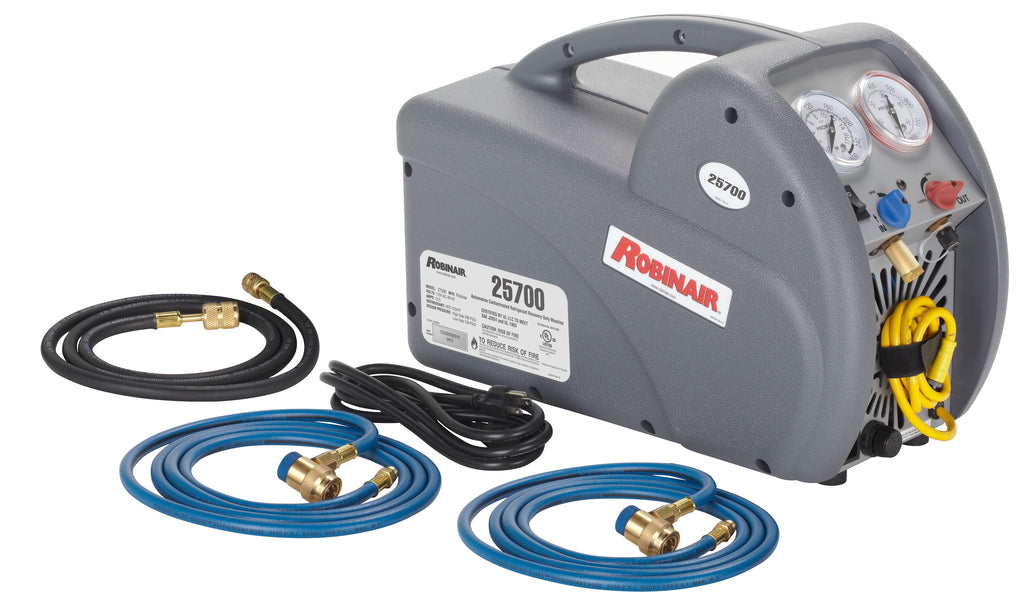

Contaminated Refrigerant Recovery Machine 25700

The Robinair 25700 is a contaminated recovery only device that is designed to remove contaminated refrigerant from vehicles that are equipped with R-1234yf and R-134a A/C systems.

The reclaim unit is durable, compact and has a portable design that allows users to recovery contaminated refrigerant easily at the vehicle.

A low side hose with R-1234yf coupler and black recovery hose is included.

The 80% tank full shut-off safety harness prevents overfilling recovery tank. (Recovery tanks must have floats utilizing a 3 Pin Brad Harrison Plug).

Proprietary oil-less compressor is capable of handling both liquid and vapour refrigerant for fast efficient recovery.

A high-pressure shut-off switch turns the machine off automatically if the pressure rises above 435 p.s.i. to protect the equipment.

Inlet filter screen stops debris from getting inside of the machine.

HFOHFO-1234yf is mildly flammable. Precautions used with other flammables (gasoline, oil) are applicable to HFO-1234yf.

FEATURES AND CAPABILITIES

• The unit meets all requirements of SAE J2851 Contaminated Recovery only device
• Oil-less Compressor - Capable of handling both liquid and vapor recovery
• Oversized Condensers and Fan - Larger condenser area and larger fan allow for maximum cooling and shorter cycle times
• High-Pressure Safety Shut-off Switch - Automatically shuts off machine if pressure rises above 435 psi
• Easy to Operate, Rugged Case - Oversized pressure gauges, comfortable handle and simple controls
• 240v power cord

SPECIFICATIONS

• Dimensions: 13” l x 9” w x 19” h
• Power supply: 1/2 hp motor
• Operating voltage: 103-127V, 60Hz AC
• Weight: 15kgs
