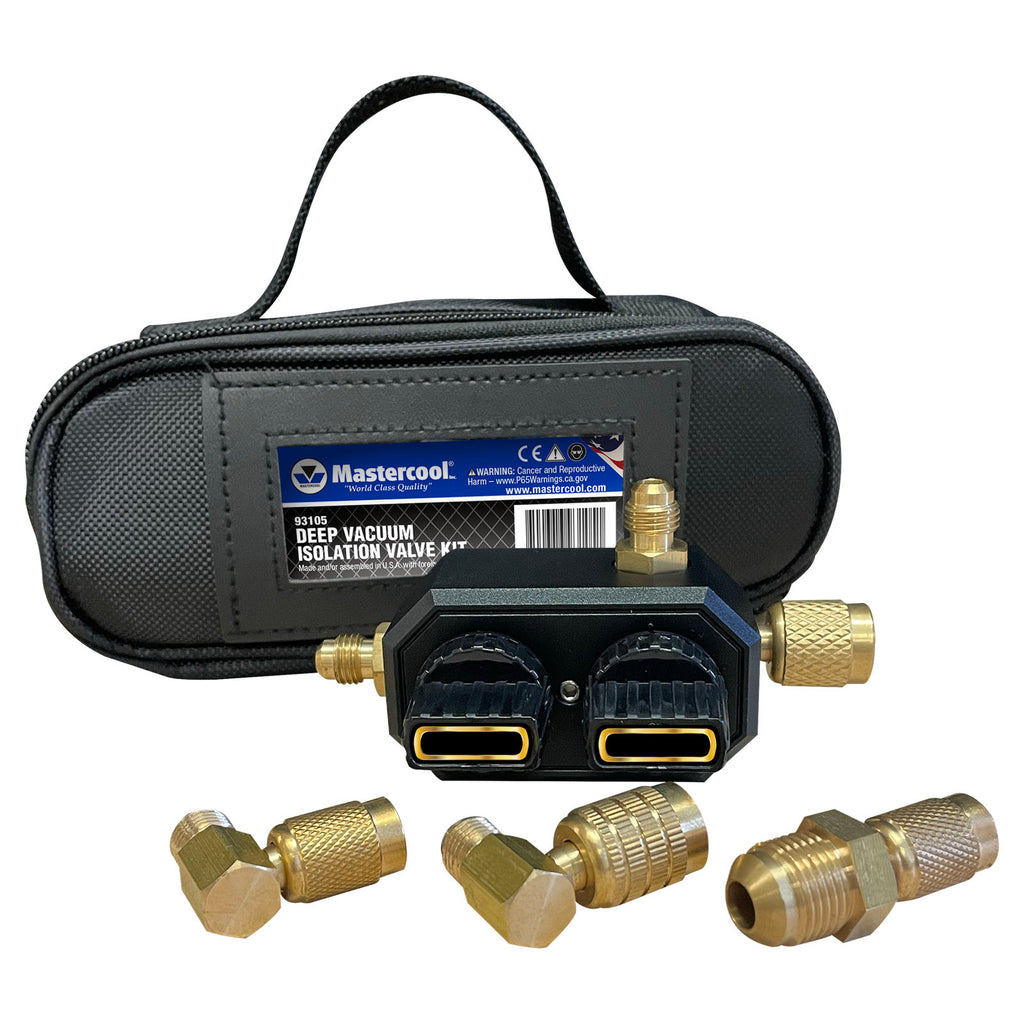

Mastercool Deep Vacuum Isolation Valve Assembly Kit 93105

93105 Mastercool Deep Vacuum Isolation Valve Assembly Kit

DOWNLOAD INSTRUCTIONS

This innovative valve goes beyond isolation. Its versatility and functionality make it an essential tool for any technician’s toolbox.

• Streamlined Leak Checks: Close the end port valve after vacuuming, then open the side valve for a quick and easy leak check.

• Safe Vacuum Gauge Isolation: Work on your system with confidence. Isolate the vacuum gauge with the dedicated side port valve.

• High-Flow, Low-Restriction: Large ports and high-flow ball valves minimize restriction, ensuring optimal system performance.
• 3-Way Functionality: The independent valves allow for a true 3-way operation, ideal for diverse applications.

• Adaptable Design: Includes adapters for seamless integration with most HVAC systems.


SPECIFICATIONS:

• 3-way ball valve with independent valves to isolate two of the ports
  • 1/4” Flare Male and Female Ports on Each End
  • 1/4” Flare Male Side Port
• Working pressure up to 600 PSI
• Adapters Included:
  • 90° Elbow, 1/4 Flare Male to 1/4 Flare Female
  • 90° Elbow, 1/4 Flare Male to 5/16 Flare Female
  • Straight Adapter, 3/8 Flare Male to 1/4 Flare Female
