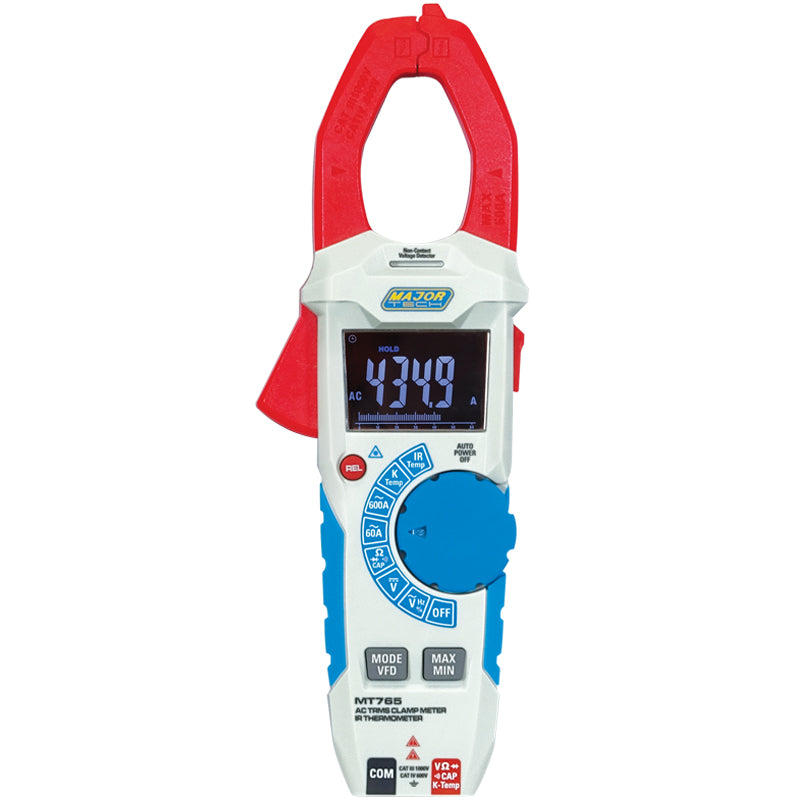

The Major Tech MT765 is a 600A AC IR Thermometer Clamp Meter. This clamp meter has a large 6000-count negative LCD display that provides fast sampling times and high-accuracy measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30⁰C to +350⁰C, plus there is a K-Type thermometer input for measurements up to 1000⁰C.
The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The VFD function allows the user to measure stable voltage in high-frequency applications of Variable Frequency Drives.
The added features of this 600A AC IR Thermometer Clamp Meter include Relative Mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
| FUNCTION | RANGE | ACCURACY |
| AC Current | 0.1A - 600A | ± (2.5% + 8 Digits) |
| DC Voltage | 0.1mV - 1000V | ± (0.8% + 5 Digits) |
| AC Voltage | 0.1V - 1000V | ± (1.5% + 5 Digits) |
| Temperature K-Type | -20 to 1000°C | ± (3°C + 3 Digits) |
| Resistance | 0.001Ω – 60MΩ | ± (2.0% + 5 Digits) |
| Capacitance | 0.001nF – 99.99mF | ± (4% + 6 Digits) |
| IR Temperature D:S 4:1 | -30.0 to 350.0°C | ± (2°C + 2 Digits) |
| Duty Cycle | 20.0% to 80.0% | ± (1.2% + 5 Digits) |
| Jaw Size | 33mm | |
| Input Impedance | >10MΩ DCV & >10MΩ VAC | |
| Safety Specs | IEC61010-1 CatIV 600V | |
| Digital Display | 6000 | |
| True RMS Measurements | ACA, ACV | |
| AC Bandwidth | 50Hz - 1000kHz | |
| Dimensions | 239 x 66 x 44mm | |
| Weight | 350g |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.
