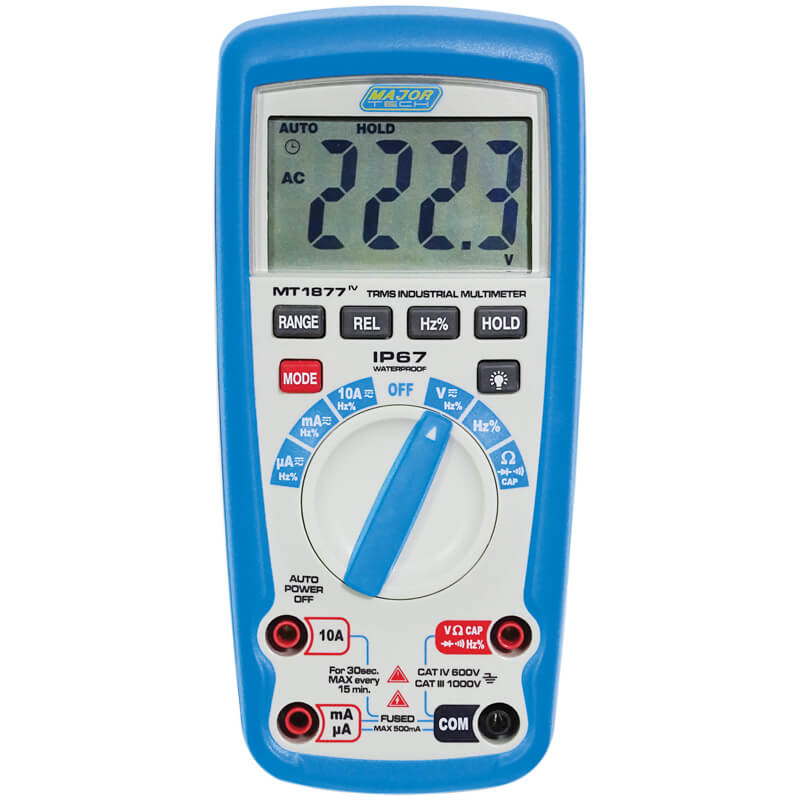

The Major Tech MT1877 1000V AC/DC IP67 True RMS Multimeter is a 4000 count auto ranging multimeter, with manual override. This meters offers a great feature of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensures that readings are easy to read under all circumstances.
This True RMS multimeter is perfect for technicians who are performing maintenance, facility maintenance, installation, and production equipment maintenance.
This Major Tech 1877 ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally.
| Function | Range | Accuracy |
| DC Voltage | 0.1mV - 1000V | ± (0.5% + 5 Digits) |
| AC Voltage | 0.1mV - 1000V | ± (0.8% + 8 Digits) |
| DC Current | 0.1μA – 10A | ± (1.0% + 3 Digits) |
| AC Current | 0.1μA – 10A | ± (1.5% + 3 Digits) |
| Duty Cycle | 0.1 to 99.9% | ± (1.2% + 2 Digits) |
| Resistance | 0.1Ω – 40MΩ | ± (0.8% + 2 Digits) |
| Frequency | 0.001Hz – 10MHz | ± (1.0% + 5 Digits) |
| Capacitance | 10pF – 99.99mF | ± (4.0% + 5 Digits) |
| Digital Display | 4000 | |
| Safety Specs | IEC61010-1 CatIV 600V | |
| AC Bandwidth | 50Hz to 1KHz | |
| Continuity | Yes | |
| Diode Test | Yes | |
| Non-Contact Voltage (NCV) | Yes | |
| Overrange indication | Yes | |
| Input Impedance | >10MΩ VDC & >9MΩ VAC | |
| Power Source | 6LR61 | |
| Weight | 335g | |
| Dimensions | 182 x 82 x 55mm |
