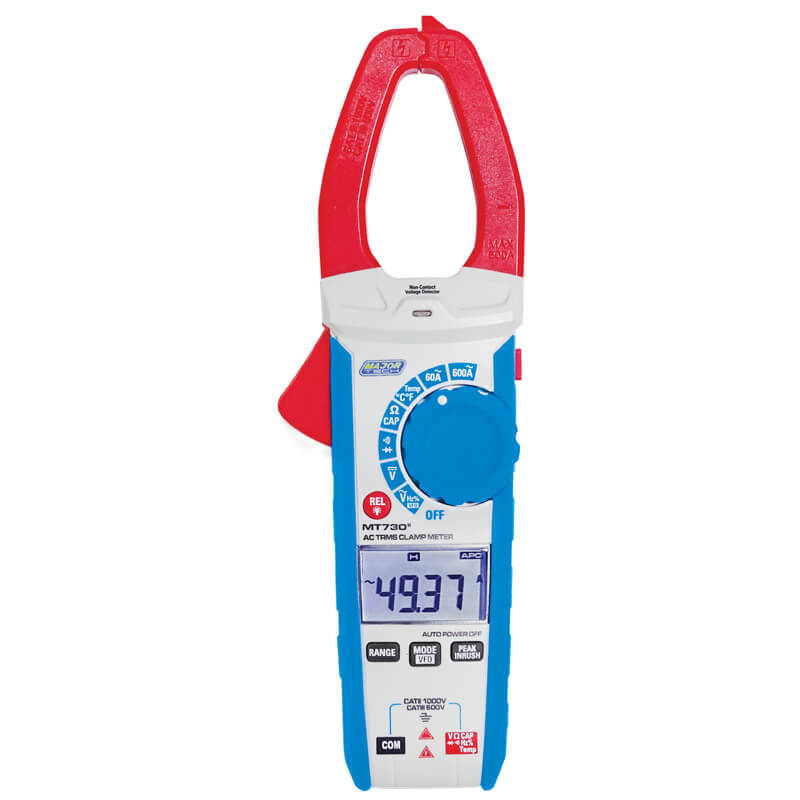

The Major Tech MT730 is a CAT III 600V, 6000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value.
The VFD function allows the user to measure stable voltage in high-frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
| FUNCTION | RANGE | ACCURACY |
| AC Current | 0.01A - 600A | ±(2.0% + 8 Digits) |
| DC Voltage | 1mV - 1000V | ±(0.9% + 3 Digits) |
| AC Voltage | 1mV - 1000V | ±(1% + 5 Digits) |
| Resistance | 0.1Ω – 60MΩ | ±(1.5% + 2 Digits) |
| Frequency | 10Hz – 100kHz | ±(1.0% + 5 Digits) |
| Duty Cycle | 20.0% - 80.0% | ±(1.2% + 10 Digits) |
| Temperature | -20 to 1000°C | ±(3% + 3.0°C Digits) |
| Safety Specs | IEC61010-1 CAT III 600V | |
| Input Impedance | >10MΩ DCV & >10MΩ VAC | |
| Jaw Size | 33mm | |
| True RMS Measurements | ACV, ACA | |
| AC Bandwidth | 50 – 1000Hz | |
| Size | 239 x 72 x 40mm | |
| Weight | 318g |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.
