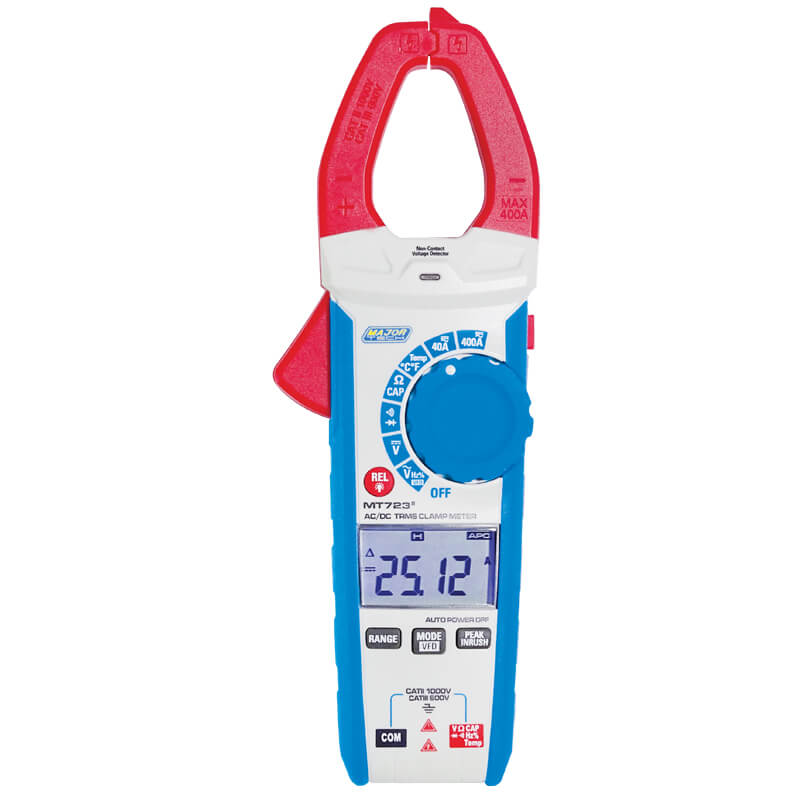

The Major Tech MT723 is a 400A AC/DC True RMS Clamp Meter that is CAT III 600V and has a 4000 count large backlit LCD display providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value.
The VFD function allows the user to measure stable voltage in high-frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
| FUNCTION | RANGE | ACCURACY |
| DC Current | 0.01A - 400A |
±(2.0% +8 Digits)
|
| AC Current | 0.01A - 400A |
±(2.0% +8 Digits)
|
| DC Voltage | 1mV - 1000V |
±(1.0% + 3 Digits)
|
| AC Voltage | 1mV - 1000V | ±(1.2% + 5 Digits) |
| Resistance |
0.01Ω – 40MΩ
|
±(1.5% +2 Digits)
|
| Frequency |
1Hz – 100kHz
|
±(1.0% +5 Digits)
|
| Capacitance |
0.01nF – 99.99mF
|
±(3.0% +5 Digits)
|
| Temperature |
-20 – 1000⁰C
|
±(3.0% +3⁰C Digits)
|
| Duty Cycle |
20% to 80%
|
±(1.2% + 10 Digits)
|
| Safety Specs | IEC61010-1 CAT III 600V | |
| Input Impedance | >10MΩ DCV & >10MΩ VAC | |
| Jaw Size | 30mm | |
| True RMS Measurements | ACV, ACA | |
| AC Bandwidth | 2KHz | |
| Size | 220 x 80 x 39mm | |
| Weight | 305g |
