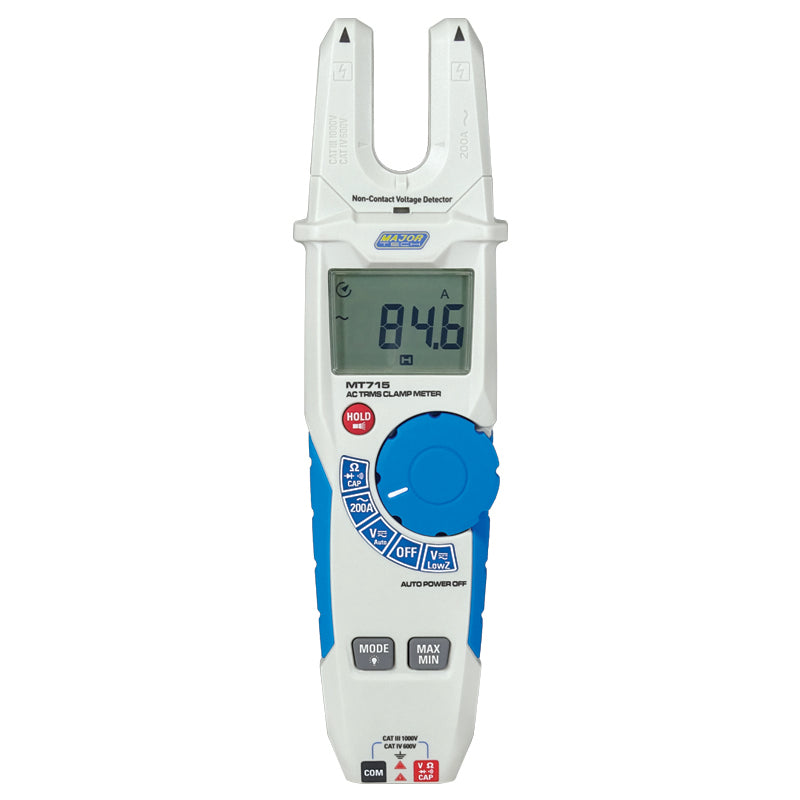

The Major Tech MT715 is a CAT IV 600V, 6000 count, True RMS 200A AC digital clamp meter with a large backlit LCD display and clamp jaw opening of 16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings.
The meter measures 1000V AC/DC, capacitance, and resistance and features a Min/Max mode. The LowZ range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Other features include Non-Contact Voltage detection, a diode test function, a continuity buzzer, and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy-duty use.
| FUNCTION | RANGE | ACCURACY |
| AC Current | 0.1 - 200.0A | ±(3.0% +5) |
| DC Voltage | 1mV - 1000V | ±(1.0% +2) |
| AC Voltage | 1mV - 1000V | ±(1.2% +2) |
| Resistance | 0.1Ω – 60MΩ | ±(1.5% +4) |
| Capacitance | 0.01nF – 4000µF | ±(3.0% +5) |
| Digital Display | 6000 | |
| Jaw Size | 16mm Open Jaw | |
| Input Impedance | >10MΩ DCV & >10MΩ VAC | |
| True RMS Measurements | ACV, ACA | |
| AC Bandwidth | 2KHz | |
| Size | 250 x 78 x 40 mm | |
| Weight | 350g |
