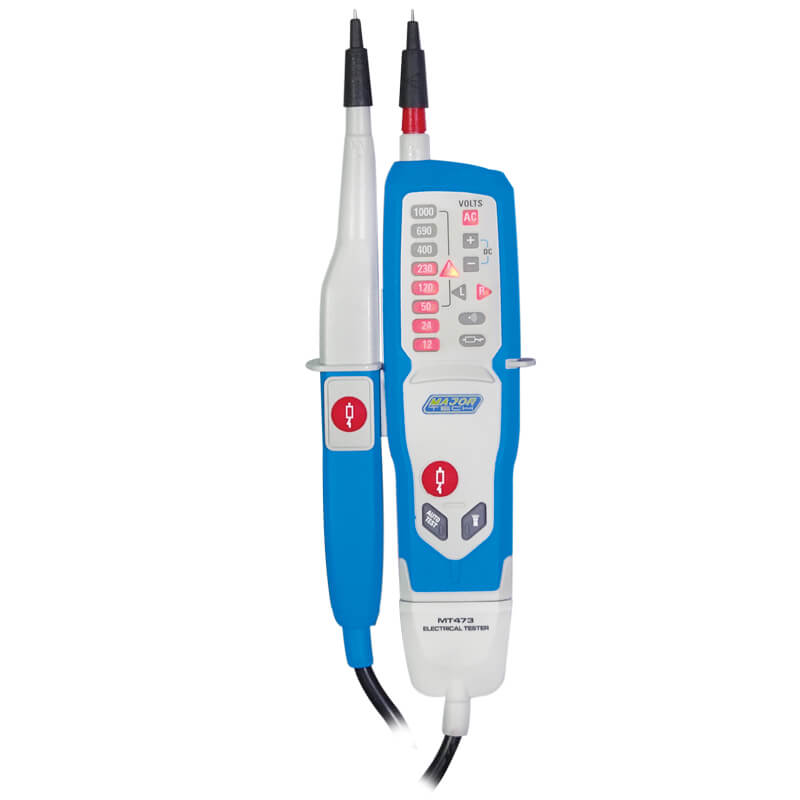

The Major Tech MT473 is a 2-Pole voltage, continuity and phase tester with rapid LED indication of voltage levels. The voltage range is from 12V to 1000V AC/DC on LED indication. When AC/DC Voltage is detected the meter has three ways to indicate the voltage, by LED visual display, sound and vibration when the load buttons are pressed. The vibration operates similarly to traditional solenoid-type voltage testers and meets IEC1010-1 CAT IV 600V safety requirements.
The Major Tech MT473 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test. Other features include a built-in flashlight and Continuity Buzzer. Diode Test. High-Quality heavy-duty moulded IP64 case, a thicker cord with wear indicator and a fitted and durable probe protector.
| Function | Range | Accuracy |
| DC Voltage | 12 - 1000V | ±(3.0% + 5 Digits) |
| AC Voltage | 12 - 1000V | ±(3.0% + 5 Digits) |
| Continuity | Yes | |
| Continuity Threshold | ≤400kΩ | |
| Rotary Field | 100 - 400V | |
| RCD Test | 30mA@230V | |
| AC Bandwidth | 50Hz - 60Hz | |
| Load Test with Vibration | Max 3.5mA at 1000V | |
| Low Battery Indication | Yes | |
| Overrange Indication | Yes | |
| Voltage Test with Load | 7kΩ | |
| Low Input Impedance | <6kΩ | |
| Enclosure | Double injection IP64 | |
| Safety Specs | IEC61010-1 CAT IV 600V | |
| Weight | 237g | |
| Dimensions | 240 x 78 x 30mm |
