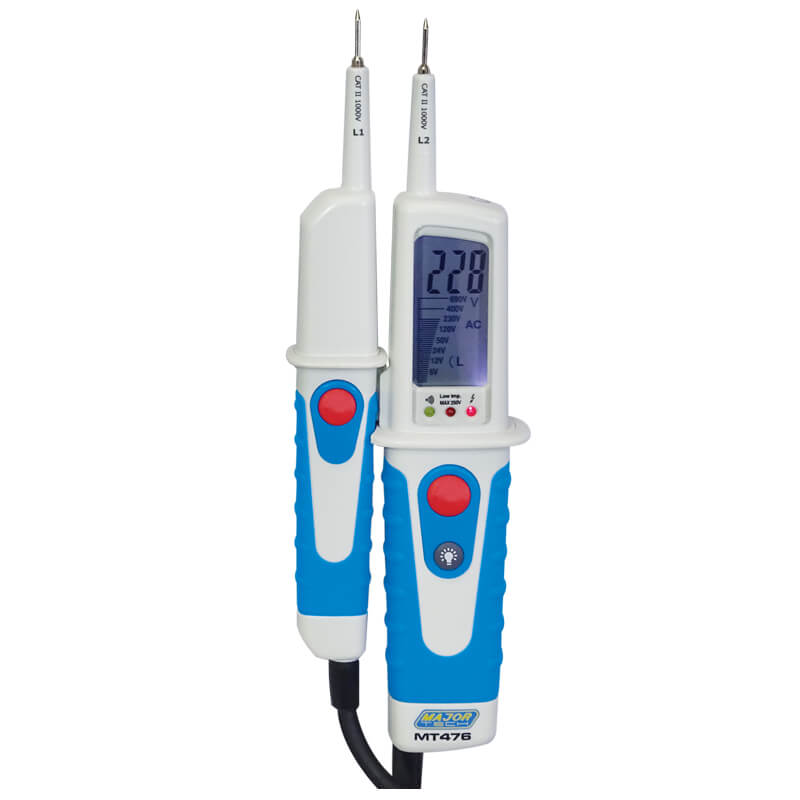

The Major Tech MT476 is IP64 and is a useful tester designed to meet electricians’ requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph.
The Major Tech MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction are shown on the LCD display, with the corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a single-pole phase tester and measure continuity up to 200kΩ. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.
| Function | Range | Accuracy |
| DC Voltage | 1V - 690V | ±(1.0% + 3 Digits) |
| AC Voltage | 1V - 690V | ±(1.5% + 3 Digits) |
| Continuity | Yes | |
| Digital Display | 2000 count LCD | |
| Rotary Field | 100V - 400V AC | |
| RCD Test | 10mA/30mA | |
| AC Bandwidth | 50Hz - 60Hz | |
| Load Test with Vibration | Yes | |
| Bargraph | Yes | |
| Polarity Indication | Yes | |
| Low Battery Indication | Yes | |
| Overrange Indication | Yes | |
| Voltage Test with Load | 7kΩ | |
| Low Input Impedance | <6kΩ | |
| Enclosure | Double injection IP64 | |
| Safety Specs | IEC61010-1 CAT IV 600V | |
| Weight | 255g | |
| Dimensions | 150 x 70 x 48mm |
