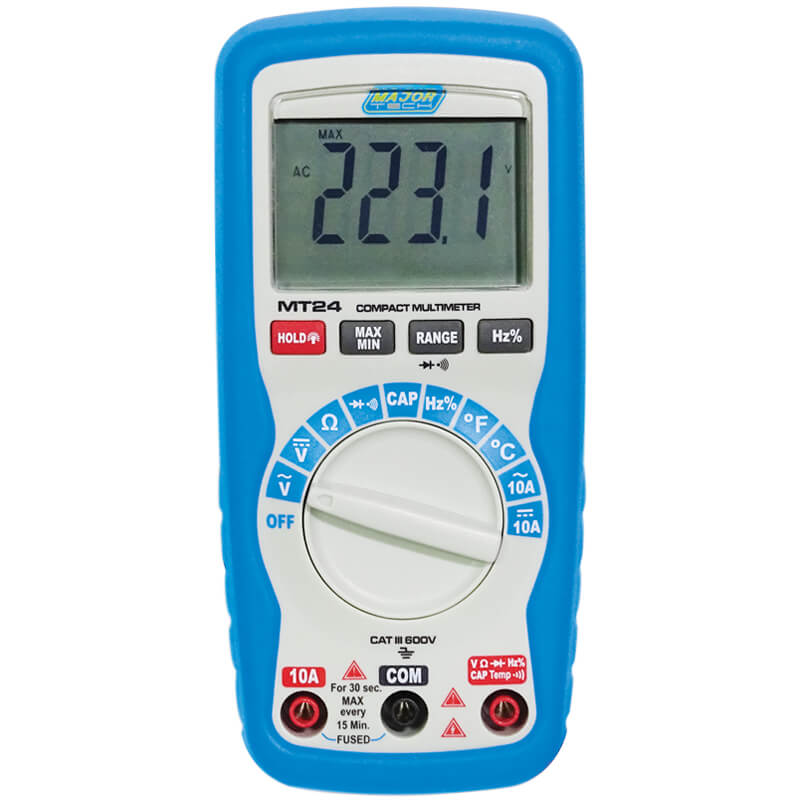

The Major Tech MT24 is a 1000V AC/DC compact multimeter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry.
This compact multimeter has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.
The Major Tech MT24 is an auto-ranging multimeter with the option of manual override and has a 6000-count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ.
| Function | Range | Accuracy |
| DC Voltage | 0.1mV - 1000V | ±(0.5% + 2 Digits) |
| AC Voltage | 1mV - 1000V | ±(1.2% + 3 Digits) |
| DC Current | 1mA - 10A | ±(2.5% + 5 Digits) |
| AC Current | 1mA - 10A | ±(3.0% + 5 Digits) |
| Duty Cycle | 0.1 to 99.90% | ±(1.2% + 2 Digits) |
| Resistance | 0.1Ω – 60MΩ | ±(1.0% + 2 Digits) |
| Frequency | 0.001Hz – 10MHz | ±(1.2% + 3 Digits) |
| Temperature | -20°C to 760°C | ±(3.0% + 5°C) |
| Capacitance | 10pF – 4000μF | ±(3.0% + 5 Digits) |
| Input Impedance | 7.8MΩ VDC & 7.8MΩ VAC | |
| Digital Display | 6000 | |
| Safety Specs | IEC61010-1 CAT III 600V | |
| Overrange Indication | Yes | |
| Continuity | Yes | |
| Diode Test | Yes | |
| Data Hold | Yes | |
| Low Battery Indication | Yes | |
| Battery | 9V | |
| Weight | 255g | |
| Dimensions | 150 x 70 x 48mm |
