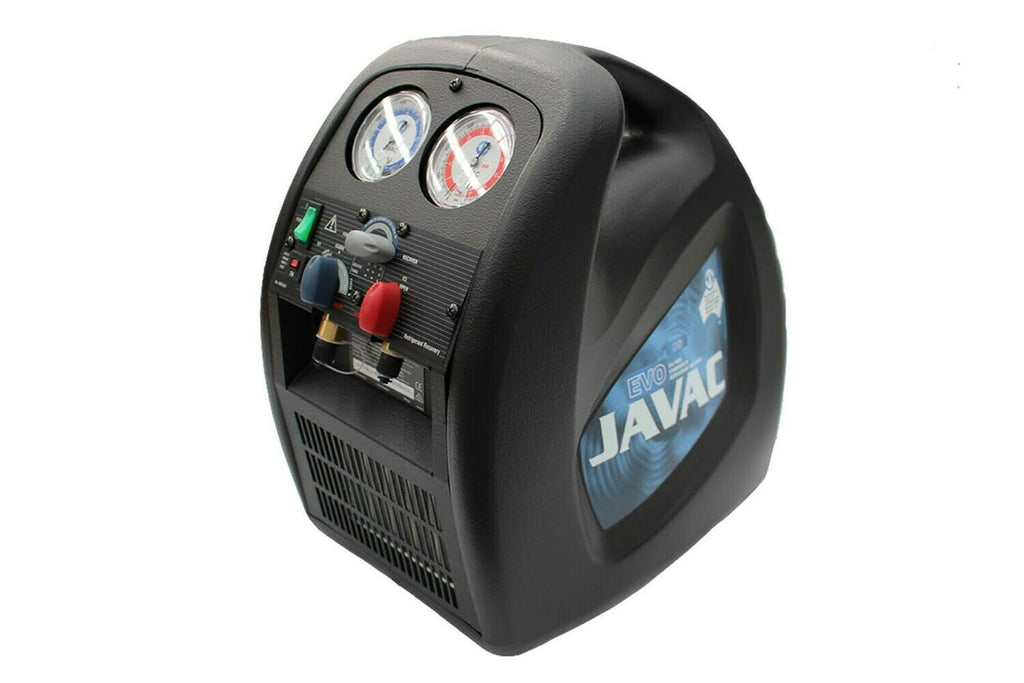

Javac EVO-OS Automotive Recovery Unit with Oil Separator

DOWNLOAD BROCHURE

CLICK HERE FOR OPTIONAL ADDON REFRIGERANT RECYCLE KIT

Not everyone needs a machine to recover large volumes, The Javac EVO machines were designed with this in mind.  All JAVAC EVO machines benefit from our extensive experience.

 Automotive A/C and small commercial service technicians don't need to be lugging an enormous recovery unit from job to job.  Not to mention the space saved inside the work truck.

They are ergonomically designed, easy to carry, have no sharp edges, cool to touch and porting that points down, not in your face.

JAVAC’s familiar 3 port manifold analyser with integrated self purge (on the fly) and inlet filter allows for user control during all points of the recovery process.

Features include

  • HP switches
  • Thermal overloads
  • Circuit breakers
  • Full product traceability

The EVO-OS features a fully integrated automatic liquid/vapour oil separator that strips incoming oil from the recovered refrigerant.

This is particularly important for automotive and light commercial applications where recovered oil must be accurately measured and replenishes the system with fresh oil prior to recharge. The oil free compressor also means that this unit is suitable for use with JAVAC’s EVRR optional recycling kit.

  • Refrigerants: For refrigerant 134a
  • Power: 220/240 VAC, 50 Hz, 1.5A
  • Compressor: 1/2 HP Oil less, No inlet valve, AC Motor Drive
  • Cooling: Fan/motor
  • Protection: High Pressure Switch Cut off at 2000 kPa
  • Pressure: Low side design pressure 1600 kPa; High side design pressure 3200 kPa
  • Temperature: Operating Range 10 to 40 C
  • Case: Blow-Moulded, High Impact Strength
  • Size: 390mm L X 250mm W X 380mm H 2.1.10
  • Weight: 11.8 Kg
