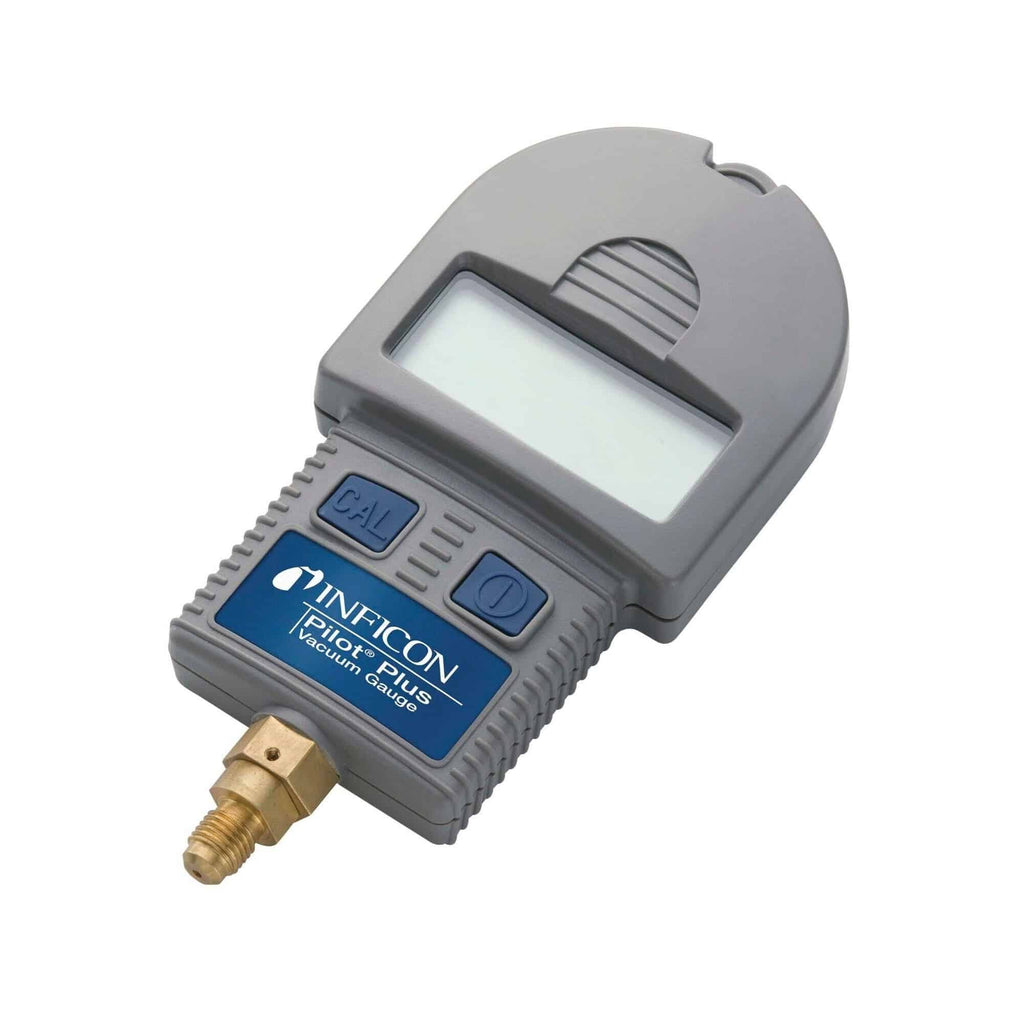

INFICON 710-202-G1 Pilot Plus Vacuum Gauge incorporates several innovative features for unsurpassed performance. Like the Pilot, it’s the only gauge to use a Pirani sensor for greater accuracy and the ability to measure the entire vacuum process, from atmosphere down to one micron. You’ll know instantly if your connections are vacuum-tight. And Pilot Plus is even more unique: An industry-first filter protects the sensor from oil and other contaminants for more accurate readings and saves you from having to clean the vacuum sensor. Quick calibration allows you to adjust Pilot Plus for slight variations in atmospheric pressure at your specific geographic location to ensure greater accuracy. You also get an extended battery life of up to 45 hours from one 9-volt battery, to keep you productive on the job. That’s three times longer than before. To maximize that battery life, Pilot Plus shuts down after 60 minutes and saves the last reading for display again upon the next start-up. User-friendly qualities of a large, easy-to-read LCD and included plastic storage case complete the Pilot Plus package.
|Base unit includes||9V battery, filters, storage case|
|Battery life||45 hours|
|Power source||(1) 9V alkaline battery, included|
|Controls||On/off, unit selection, quick calibration|
|Display units||microns, Pascal, millibar, Torr|
|Display range||atm (760,000 microns) to 1 micron (0.01 mbar, 0.001 Torr, 1 Pa)|
|Auto shut-off||After 60 minutes; last reading displayed when restarted|
|Maximum overpressure||150 psi (7.76 x 106 microns)
