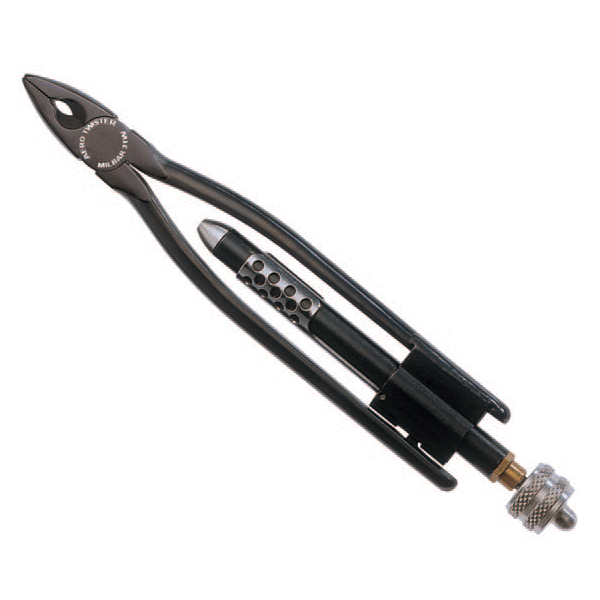

Imperial Auto Return Safety Wire Twisting Pliers 6W4
  • SKU: 6W4

Imperial Auto Return Safety Wire Twisting Pliers 6W4

$246.18
GST included.
    DESCRIPTION

    6W4 Milbar Safe Wire Twist Pliers

    The world’s leading brand of Wire Twister Tools and Kits, Milbar LockWire Twisters are designed for the professional mechanic.

    Milbar forgings are made from high-carbon alloy steel and are controlled throughout the manufacturing process to exact engineering specifications.

    Each tool passes a series of rigorous quality assurance tests which ensure function and reliability under the most demanding environments.
    • Milbar Wire Twisters come in three nominal sizes: 6”, 9” and 12”
    • Diagonal (standard) or Tapered nose configurations are provided to complement specific applications and user preference
    • Some models incorporate a Cushion Throat to catch clipped wire ends, preventing FOD (foreign object damage)
    • Spring Return feature automatically retracts the twist rod to ease and speed the work
    • Milbar Wire Twisters can produce right-hand twists (clockwise action), left-hand twists or both (reversible action)

    WHAT'S INCLUDED

    • 1 x 6W4 Imperial Safety Wire Twisting Pliers

    Available in many options below.

    Part No. Description Nom Size(in) Return Twist NOSE JAW
    25W SafetyTwist 6 Auto Reversible Diagonal Cushion Throat
    30W SafetyTwist 6 Manual Right Diagonal Standard
    1W SafetyTwist 9 Manual Right Diagonal Standard
    1W393 SafetyTwist 9 Auto Right Diagonal Standard
    3W6 SafetyTwist 9 Auto Right Diagonal Cushion Throat
    5W4 SafetyTwist 9 Auto
    Left Diagonal Standard
    5W6 SafetyTwist 9 Manual Left Diagonal Standard
    2W SafetyTwist 12 Manual Right Diagonal Standard
    2W393 SafetyTwist 12 Auto Right Diagonal Standard
    6W4 SafetyTwist 12 Auto Left Diagonal Standard
    42W SafetyTwist 12 Auto Reversible Diagonal Standard


    Safety Wire Installation Using Double Twist Method with Milbar Pliers
    (AEROSPACE STANDARD AS567)

    1. The safety wire is installed so if the fastener has any tendency to loosen, it will cause the safety wire to tighten.
    2. The maximum span of the safety wire (between tension points) shall be 6" (152 mm).
    3. The maximum length of safety wire to be used in a single application is 24" (609 mm).
    4. The number of twists per inch (1 twist = 1/2 complete turn) depends upon wire diameter: 0.020" to 0.025" dia., 8-14 twists; 0.032" to 0.041" dia., 6-11 twists; 0.051" to 0.060" dia., 4-9 twists.
    5. The wire which is looped around the outside of the fastener must always be routed UNDER the wire protruding from the hole (so that the loop will stay down and not cause slack). This often requires the direction of the wrap and twist of strands to REVERSE from run to run or run to pigtail.
    6. Pigtail should be no more than 3/4" long and have a minimum of four (4) twists.
      Ends should be cut and bent toward the fastener to prevent snags.
