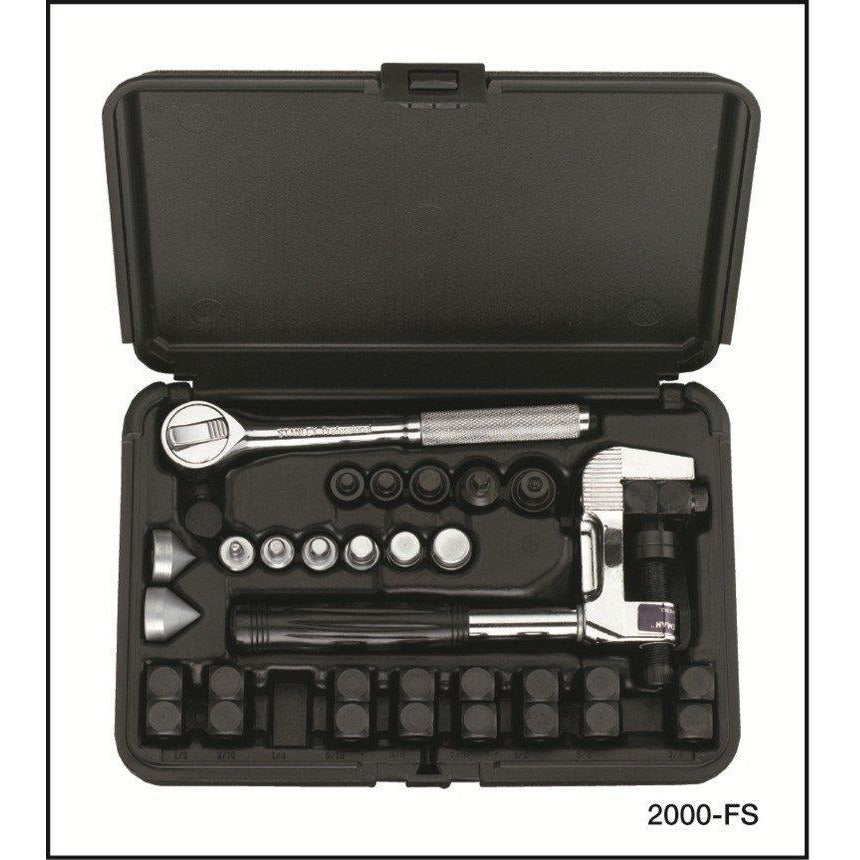

2000-FS FLAREPRO™ Four-in-One Flaring and Swaging Tool Kit
For copper, aluminum, steel, stainless steel and other metal tubing
Great value kit, saving you heaps from buying separate flaring blocks and expander kits, with the added advantage of taking up less room in your truck.
The 2000-FS individual size jaw sets are used for positive clamping compactness and operating convenience.
Socket head screws are provided for clamping the jaws to the yoke and feeding the tube forming components. The screws are hand-turned for all free travel movement when advancing or retracting.
A hex socket and 3/8” square drive ratchet are furnished for easy operation of the threaded members under load. Tube forming components (flaring cones, double flaring adapters and swaging adapters) are retained on the feed screw by a ball detent mechanism and can be snapped on and off for quick change as required.
The tool is designed to permit hand-held or vise-mounted operation. Includes tool case.

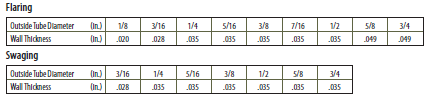

Flaring - 37° and 45°: Flares soft copper, brass, aluminum, steel and stainless steel up to 3.1mm wall thickness in nine tube sizes: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D. tubing.
Double Flaring - 45° Only: Double flares soft copper, aluminum and steel (Bundy or G.M. to .035 [ 0.89mm ] wall) in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
Swaging - Swages soft copper, aluminum and brass in seven tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8” and 3/4” O.D. tubing.
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.
