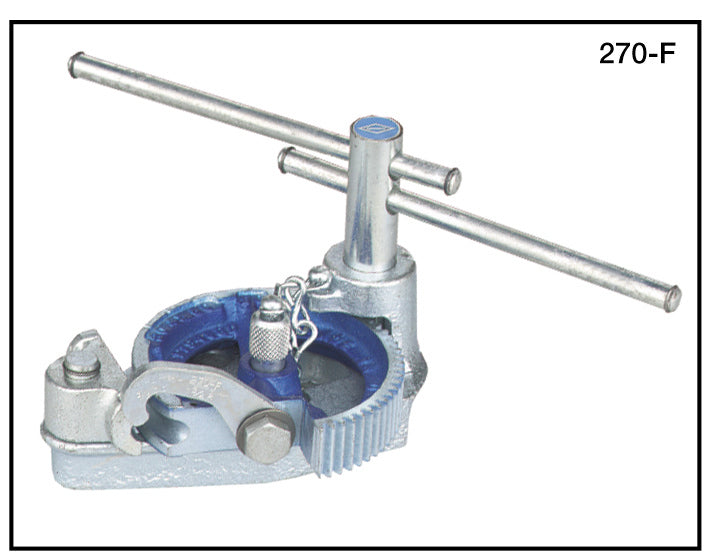

Imperial 90º Gear Type Tube Bender for 7/8

SKU: 270-F-14

Imperial 90º Gear Type Tube Bender for 7/8" OD Tube and Pipe 270-F-14

$557.69

GST included.

Shipping Ask about this product

ADD TO WISHLIST

DESCRIPTION

270-F-14 90º GEAR BENDER RANGE for 7/8" OD Tubing

DOWNLOAD INSTRUCTIONS

Highly recommended for bending tasks
Spur-gear type with a 10-to-1 ratio for easy bending of tempered tubing
The floating shoe aligns the tube perfectly on the calibrated forming wheel
Pull-pin on wheel speeds repositioning for bends over 90°
Portable Bender which can be hand-held and clamped in vise or bolted to a bench.

Part No.	Tube O.D. (in.)	Radius to Center of Tube (in.)	Weight Each (lbs)	Wall Thickness (in.)
270-F-06	3/8	1-3/4	3	.030 to .060
270-F-08	1/2	2-1/2	4.75	.035 to .065
270-F-10	5/8	3	8.5	.040 to .072
270-F-12	3/4	4	15	.042 to .083
270-F-14	7/8	4	14.75	.045 to .083
270-F-16	1	4	14.75	.065 to .095*
270-F-18	1-1/8	4	14.25	.065 to .095*
271-F			1.75

Note: Not Recommended for Type L Hard and Type M copper tubing with a wall thickness over .065".
