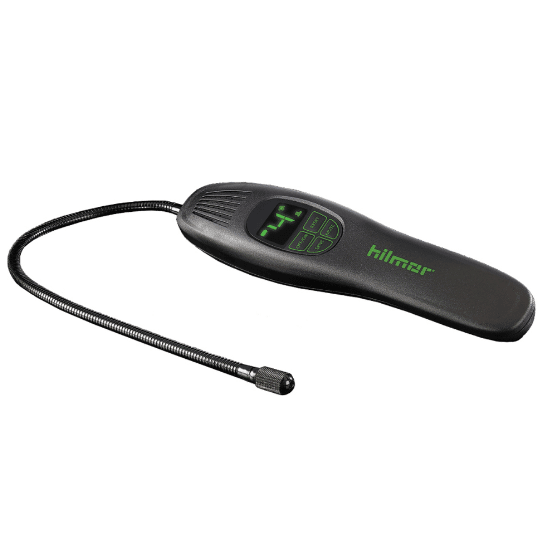

Hilmor Heated Diode Refrigerant Leak Detector
The hilmor Heated Diode Leak Detector offers the greatest sensitivity and fastest response of any portable refrigerant detector available. This is achieved through the use of a highly sensitive semi-conductive sensor combined with a sophisticated microprocessor-controlled circuit.
In addition to the superior performance and functional advantages, it offers a uniquely designed ergonomic shape to provide greater ease of use and comfort.
Tight Space? No problem. Find leaks fast with the flexible probe that allows access to all of those hard-to-reach areas.
|Sensor Type||Semi-Conductive Sensor (Heated Diode)|
|Sensor Life||5 years (typical)|
|Maximum Sensitivity||4 grams/year|
|Response Time||3 seconds|
|Warm-Up Time||30 seconds|
|Operating Environment||32°F (0°C) to 104°F (40°C)
at < 75% RH (non-condensing) 32°F (0°C) to 104°F (40°C)
at < 75% RH (non-condensing)
|Display Method||LED Display|
|Notification Mode||LED Display and Audio|
|Battery||(3) 1.5V AA|
|Battery Saver||Automatic Shutdown after
10 Minutes of inactivityAutomatic Shutdown after
10 Minutes of inactivity
|Working Time||6 hours|
|Certifications||SAE J1627, SAE J2791, SAE J2913, EN14624: 2012|
|Refrigerants Detected||It will detect to all halogenated (including Chlorine and Fluorine) refrigerants. This includes, but is not limited to: CFC: R12, R11, R500, R503 HCFC: R22, R123, R124, R502 HFC: R134A, R404A, R410A, R407C|
|Weight||14 oz. (397g)|
|Size||10.25" X 2.25" X 2.25" (260.35mm X 57.15mm X 57.15mm)|
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.
