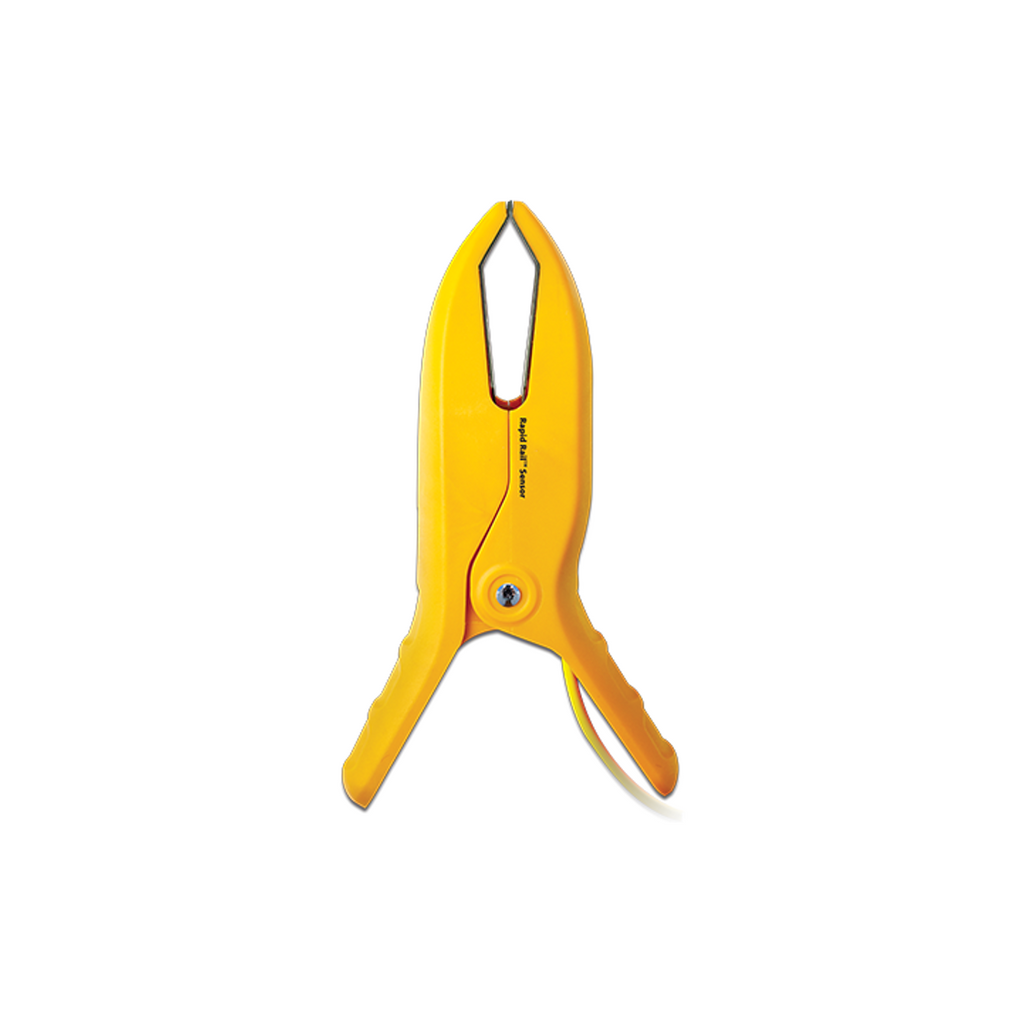

Fieldpiece Pipe Clamp K-Type Thermocouple with 105mm Jaw Opening - TC48

Use the TC48 Pipe Clamp K-Type Thermocouple to take temperatures of pipes or any other cylindrical surface between 3/4″ to 4 1/8″ (105mm).

The patented Rapid Rail™ Sensor Technology uses electrically conductive pipe to complete the circuit so readings stabilize immediately, unlike the other guys that can take several minutes. Plus, measurements are not affected by ambient air, wind, or moisture on the pipe surface – culprits known to throw readings off by as much as 3-4 degrees.

As the fastest pipe clamp in the industry, technicians who prefer a longer cord at 1.8 metres – can choose the model TC48, for less crouching and more range which includes a Type K male mini plug for a universal fit.

For those who enjoy more freedom, go to the Fieldpiece Job Link® System mobile app-enabled JL3LC —enabling 350’ + wireless communication of full system details with building managers, documenting system performance, and more. It also communicates wirelessly with the SMAN® Refrigerant Manifolds, models SM380V and SM480V.

SPECIFICATIONS

• Temperature range: -50°F to 257°F (-46°C to 125°C)
• Accuracy: ±2.2°C, only ±0.6°C after field calibration
• Jaw Range: 3/4" to 4 1/8" (19.05mm to 104.78mm) outside diameter
• Plug: K-type Thermocouple male mini plug
• Rapid Rail™ Sensor Technology thermocouple (nickel chromium / nickel aluminum)
• Electrically conductive pipe contact surface compatibility
• Typical stabilization time: 3 seconds
• Waterproof, rugged, and built to withstand the rigours of field use

WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
