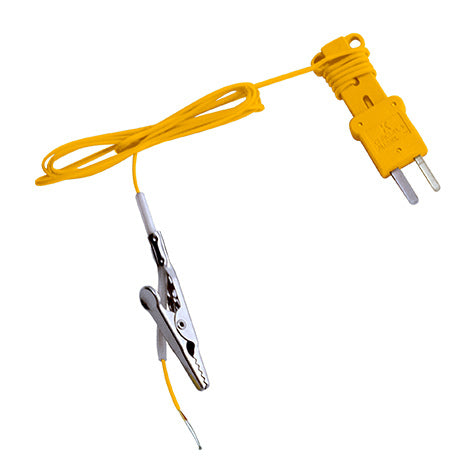

Fieldpiece K-type Thermocouple with Alligator Clip - ATA1

The ATA1, Type-K thermocouple can clip to HVACR equipment for convenient placement and hands-free testing. The ATA1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.

• Clip to condenser fins for accurate outdoor dry bulb measurement – great for finding target superheat
• Clip to evaporator filters for indoor dry bulb – great for finding target evaporator exit temperature
• Clip to supply vents for dry bulb supply temperature

HVACR technicians find the ATA1 extremely helpful when data logging or anytime an extra hand is needed. The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab. No more tangled messes in your tool bag.

FEATURES AND CAPABILITIES

• Temperature range: -50 to 400ºF (-46 to 204°C)
• Accuracy: +/- 4ºF (2°C) ; ±1°F (0.5°C) after field calibration, 32 to 176ºF (0 to 80°C)
• Thermocouple conductors: Type-K nickel chromium/nickel aluminum

• Probe insulation: Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 400°F (204°C)

• Plug: Type-K thermocouple male mini plug
