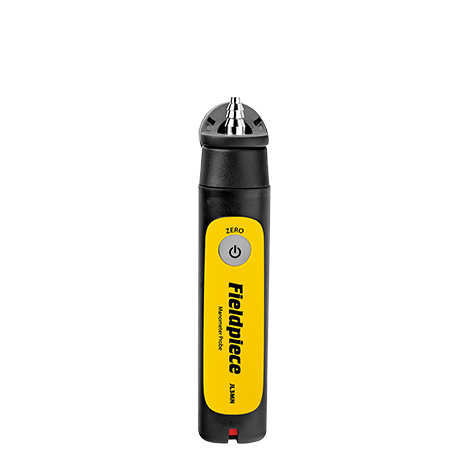

Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work.
Versatile and durable.
With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly with the Job Link App.
Also available in a kit: Fieldpiece Job Link Wireless Manometer Kit - JL3KM2
|Minimum Device Requirement||BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
(Latest compatibility at www.fieldpiece.com)
|Compatible Media||Dry, non-corrosive gas|
|Pressure Port||Tube connector for flexible tubing (4.5 to 8mm ID)|
|Units of Measure||inWC, mmWC, mbar, psi, Pa|
|Accuracy and Ranges||inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
|Maximum Overload Pressure||321.08 inWC (11.6 psi; 80.0 kPa)|
|Battery Type||2 x AAA, NEDA 24A, IEC LR03|
|Battery Life||150 hours typical alkaline.
LED slow-blinks red when battery replacement is needed
|Auto Power Off||2 hours (APO can be disabled)|
|Wireless Range||1000 feet (305 meters) line of sight – obstructions affect distance|
|Radio Frequency||2.4 GHz|
|Operating Environment||-10°F to 122°F (-23°C to 50°C) at <75% RH|
|Storage Temperature||-10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)|
|Temperature Coefficient|| 0.1 x (specified accuracy)
per 1.8°F (-10°F to 64°F, 82°F to 122°F),
per 1°C (-23°C to 18°C, 28°C to 50°C)
|Weight||0.30 lbs (137 g)|
1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
