Fieldpiece Heated Diode Sensor Replacement for DR58 and SRL8 Refrigerant Leak Detectors - RHD1

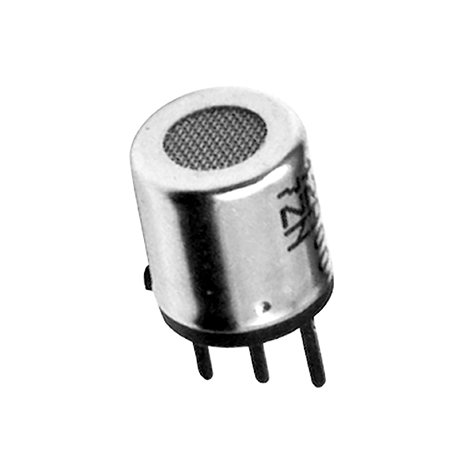

RHD1 Replacement Heated Diode Refrigerant Sensor

Although the Fieldpiece heated diode refrigerant leak detector sensor is designed to last up to five years with normal use, Fieldpiece meters generally last a lot longer. This replacement sensor is suitable for the Fieldpiece Heated Diode Refrigerant Leak Detector models DR58 and SRL8.

Sensor Installation for DR58

1. Ensure your DR58 is powered off.
2. Remove the 3 screws of the sensor cap.
3. Pull the sensor cap away from the back case.
4. If replacing, pull out the old sensor.
5. Push new sensor (RHD1) into pin holes. Pin orientation does not matter.
6. Push sensor cap back onto back case and secure with the 3 screws.
7. If replacing, hold and SENSITIVITY 5 sec to reset sensor hours. Hold ZERO to confirm or to cancel.
