Fieldpiece 2-Port Manometer Pressure. Suitable for Air, LPG & Nat. Gas SDMN5-Fieldpiece HVAC Tool-Fieldpiece-Cool Tools HVAC-R
Sold Out
  • SKU: SDMN5

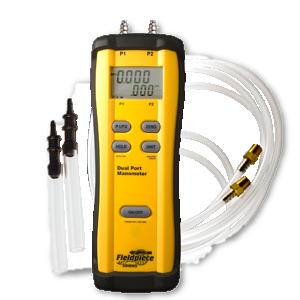

Fieldpiece Dual Port Manometer - SDMN5

$555.95
GST included.
    DESCRIPTION
    Use for Static Pressure, Differential Pressure, LPG & Natural Gas Pressure
    The SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians.

    Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function that conserves battery life.

    The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.

    Includes 3/16” to 5/16” adapter for measuring gas inlet and outlet pressures.

    The SDMN5 evolved as a result of testing pressures in the field for 20 years. Its range and resolution allow you to measure the HVAC applications you run into every day in HVAC/R field service.

    Measure gas pressure on the inlet and outlets with the standard 3/16” fittings or the included adapters for 5/16” ports, take static pressure measurements across a blower and get the pressure differential with the push of a button to check drafts.

    Whether you’re holding the ergonomic standalone shape in your hand or hang the SDMN5 on the unit with the magnetic hanger to fill out a work order, the SDMN5 make HVAC/R field service easier and faster, with less fatigue than the other guys.

    FEATURES AND CAPABILITIES

    • Measures duct pressures to balance air flow
    • Suitable for Static Air Pressure, LPG & CNG - Natural Gas Measurements
    • Resolution down to 0.01" WC for static pressure measurement
    • -60.0"WC to 60.0"WC & -150.0 to 150.0 mBar, mmWC or PSI selectable ranges

    WHAT'S INCLUDED

    • Dual-Port Manometer - SDMN5
    • 2 x 3/16” Tubes with Brass Fittings
    • 2 x 3/16” to 5/16” Tube Adapters - RMA316
    • 9V Battery (installed)
    • Operator’s Manual

    WARRANTY

    1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

    AUTHORISED RETAILER

    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

    SCROLL UP AND "ADD TO CART" TODAY.

    SHIPPING

    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
