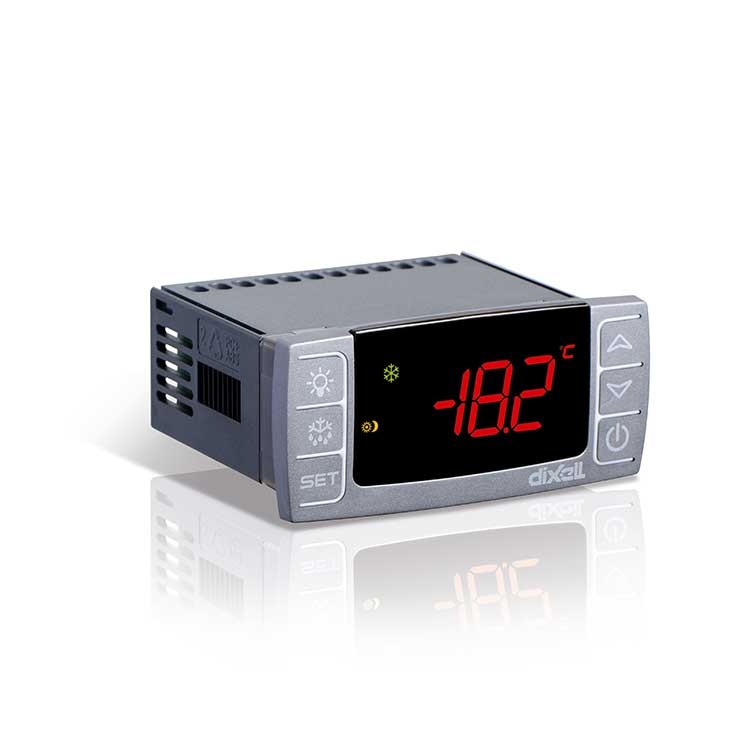

Dixell Digital Thermostat with Off Cycle Defrost & Aux Relay XR30CXB
  • SKU: XR30CXB

Dixell Digital Thermostat with Off Cycle Defrost & Aux Relay XR30CXB

$150.70
GST included.
    DESCRIPTION

    XR30CXB Digital Medium Temp Controller with Off-Cycle Defrost and Aux Alarm Relay 240V

    DOWNLOAD MANUAL

    XR30CXB is a digital thermostat with an off-cycle defrost designed for refrigeration applications at normal temperatures. It provides two relay outputs, one for the compressor, and the other one can be used as a light, for alarm signalling or as auxiliary output. It is also provided with 2 NTC or PTC probe inputs, the first one for temperature control, and the second one, optional, to connect to the HOT KEY terminals to signal the condenser temperature alarm or to display a temperature. The digital input can operate as a third temperature probe.

    • Icons and measurement units are integrated into the display for a better visibility
    • Easy and intuitive programming mode
    • Blue digital numbers

    WHAT'S INCLUDED

    • 1 x Digital Medium Temp Controller with Aux Relay XR30CXB

    SPECIFICATIONS

    Resolution 0,1 °C or 1°C or 1 °F
    Accuracy (ambient temp. 25°C) ±0,7 °C ±1 digit
    Relative Humidity 20÷85% (no condensing)
    Operating Temperature 0÷60 °C
    Storage Temperature -30÷85 °C
    Rated Impulsive Voltage 2500V
    Digital Input Free Voltage Contact
    Relay Outputs (Compressor) 20(8)A 250Vac
    AUX SPDT 8(3) A, 250Vac
    Measuring and regulation range NTC probe: -40÷110°C (-40÷230°F)
    PTC probe: -50÷150°C (-58÷302°F)
