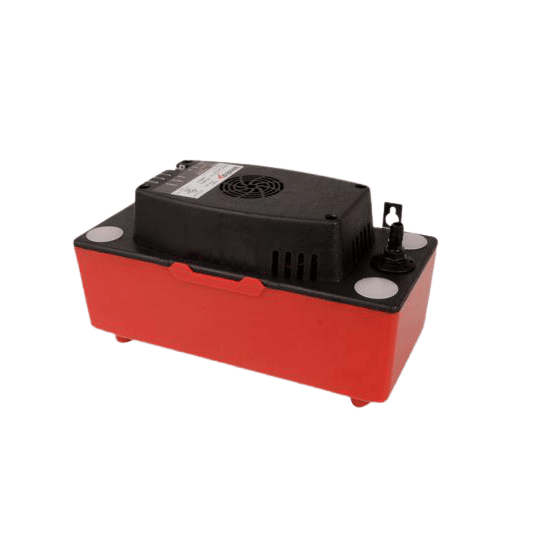

Diversitech Redbox 2L Condensate Pump CP-22-230

Suitable for use with condensate from HVAC equipment which produces condensate

DOWNLOAD DATASHEET

DOWNLOAD MANUAL

This pump is designed to automatically remove the condensate water that collects from appliances such as air conditioners, high-efficiency furnaces and de-humidifiers. The pump has a built-in tank that collects water from the appliance. When water collected reaches a sufficient level inside the pump tank, the pump switches on and pumps water to a remote location for disposal

22’ of lift compared to the typical 20’. Features include vibration-dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and a check valve. Integrating the CP-22 into your system is easy. 1/4” quick-connect terminals provide an easy connection to the built-in overflow switch. Two terminals are provided allowing flexibility to connect air handler shutdown

The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low-profile package. This pump is only 4 3/8in. tall so it’s a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degrees F

FEATURES

• Vibration Isolation - elastomeric motor mounting gasket dampens vibration
• Indicator Lights - shows the pump status. Green shows the power applied to the pump, yellow shows the pump is running, and red is for high-level alarm
• Rubber Feet - the rubber feet that support the CP-22 Condensate pump help to dampen vibration which reduces noise
• Four Inlet Holes - the four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for durability
• Removable Check Valve - the CP-22 Condensate Pump features a removable check valve which allows for hassle-free cleaning
• Overflow Safety Switch - the 1/4″ quick connect terminals provide easy connection to the built-in overflow switch. Two terminals are provided allowing the installer flexibility to connect the air handler shut-down. The switch features SPDT-isolated contacts ready for connection to building automation systems
• Metal Hang Tabs - the CP-22 Condensate Pump comes equipped with shatterproof stainless steel hang tabs which have a hole-and-slot design for easy mounting. The tabs are located on convenient 8″ centres

WHAT'S INCLUDED

• 1 x 2L Redbox Condensate Pump

SPECIFICATION:

• Dimension: 30 x 15 x 17 cm
• Flow Rate: 1.6 LPM
• Discharge head: 6.7 meters
• Reservoir Capacity: 1.9 Litres
• Input supply rating: 230 volt AC 60 hertz 1 amp
• Temperature rating: 60c (continuous), 70c (Inlet)
• Options: Safety switch
• Application: High-efficiency furnace and Humidifier
• Applicable standard: UL
• Input type: NEMA 6 to 15 Plug
• Inlet height size from the base: 2.2 cm
• Connection Type:  Hardwired / Stripped Wire
