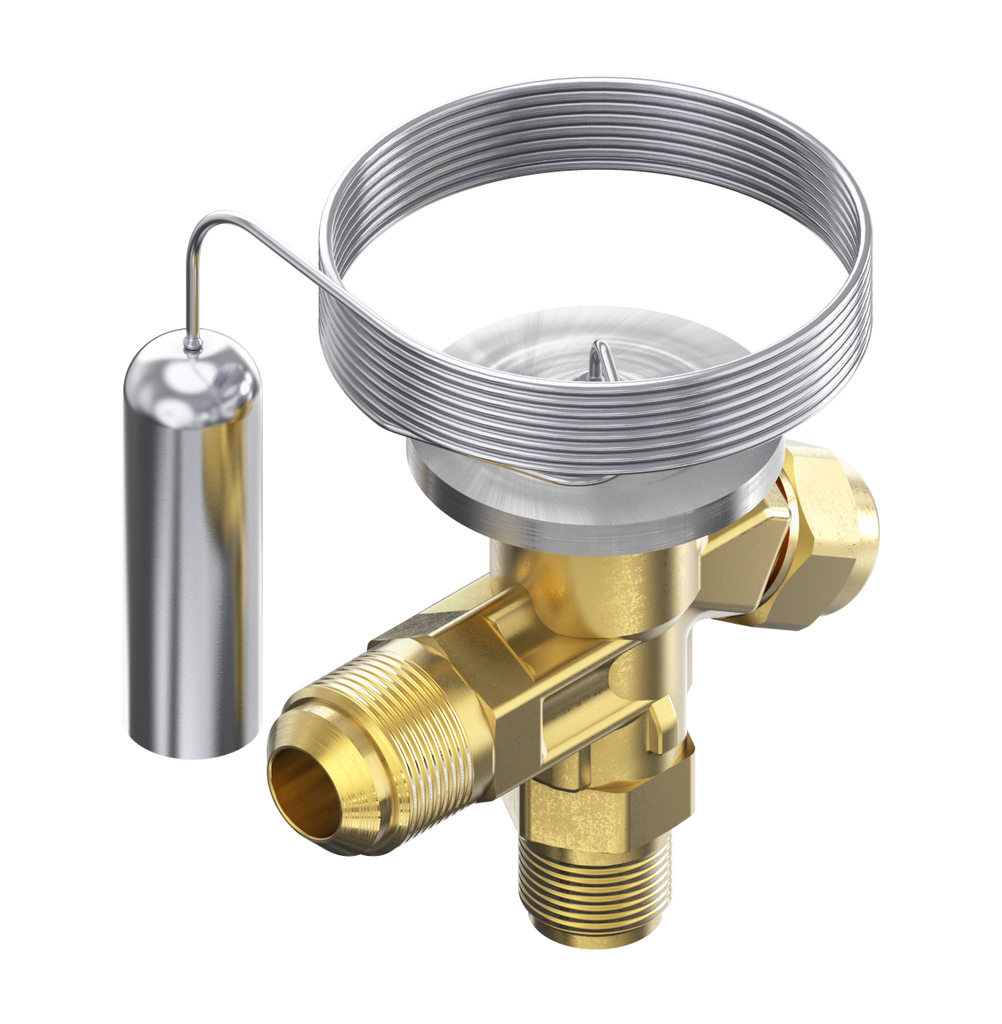

Danfoss R134A R513A Thermostatic Expansion Valve T2 068Z3346
Danfoss R134A R513A Thermostatic Expansion Valve T2 068Z3346
  • SKU: 068Z3346

Danfoss R134A R513A Thermostatic Expansion Valve T2 068Z3346

$133.80
GST included.
    DESCRIPTION

    068Z3346 Danfoss R134A R513A Internal Thermostatic Expansion Valve T2 - Flare x Flare

    DOWNLOAD DATASHEET

    Thermostatic expansion valves maintain a constant superheat level at the evaporator outlet and regulate the injection of refrigerant liquid into evaporators.

    Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

    • Large temperature range
    • Interchangeable orifice assembly
    • Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
    • Can be supplied with MOP (Max. Operating Pressure)
    • Stainless steel bulb and Danfoss patented bulb strap
    • Valves for special temperature ranges can be supplied
    • Design protected

    WHAT'S INCLUDED

    • 1 x Danfoss R134A R513A Thermostatic Expansion Valve T2 - Flare x Flare

    SPECIFICATIONS

    Gross weight 0.3 kg
    Net weight 0.28 kg
    EAN 5702422114307
    Approval EAC LLC CDC TYSK
    Body material Brass
    Capillary tube length [in] 59 in
    Capillary tube length [mm] 1500 mm
    Connection material Brass
    Direction Angleway
    Flow direction Single-flow
    Flow direction indicator Embossed 1-way arrow
    Fluid Group 2
    Identical product 068Z3542
    Inlet connection type FLARE
    Inlet size [in] 3/8 in
    Max. Working Pressure [bar] 34 bar
    Max. Working Pressure [psig] 500 psig
    Outlet connection type FLARE
    Outlet size [in] 1/2 in
    Packing format Multi pack
    Parts included Bulb strap
    Parts Program name T2/TE2
    PED category Art. 4, par. 3
    Pressure equalization Internally equalized
    Product accessories TXV accessories
    Product family name T2
    Product group Expansion valves
    Product name Thermostatic expansion valve
    Rated cap. cond. Range N [IMP] OS=10.8 ºF
    tcond=100 ºF
    tevap=40 ºF
    tliq=98 ºF
    Rated cap. cond. Range N [SI] OS=6K
    tcond=38 ºC
    tevap=4.4 ºC
    tliq=37 ºC
    REACH Candidate List substances >0.1% Lead (CAS no. 7439-92-1)
    Refrigerants R134a/R513A
    Serviceable TXV spare parts
    Static Superheat (SS) [°C] 4 °C
    Static Superheat (SS) [°F] 7.2 °F
    Superheat setting Adjustable
    Temperature range [°C] [Max] 10 °C
    Temperature range [°C] [Min] -40 °C
    Temperature range [°F] [Max] 50 °F
    Temperature range [°F] [Min] -40 °F
    Type T 2
