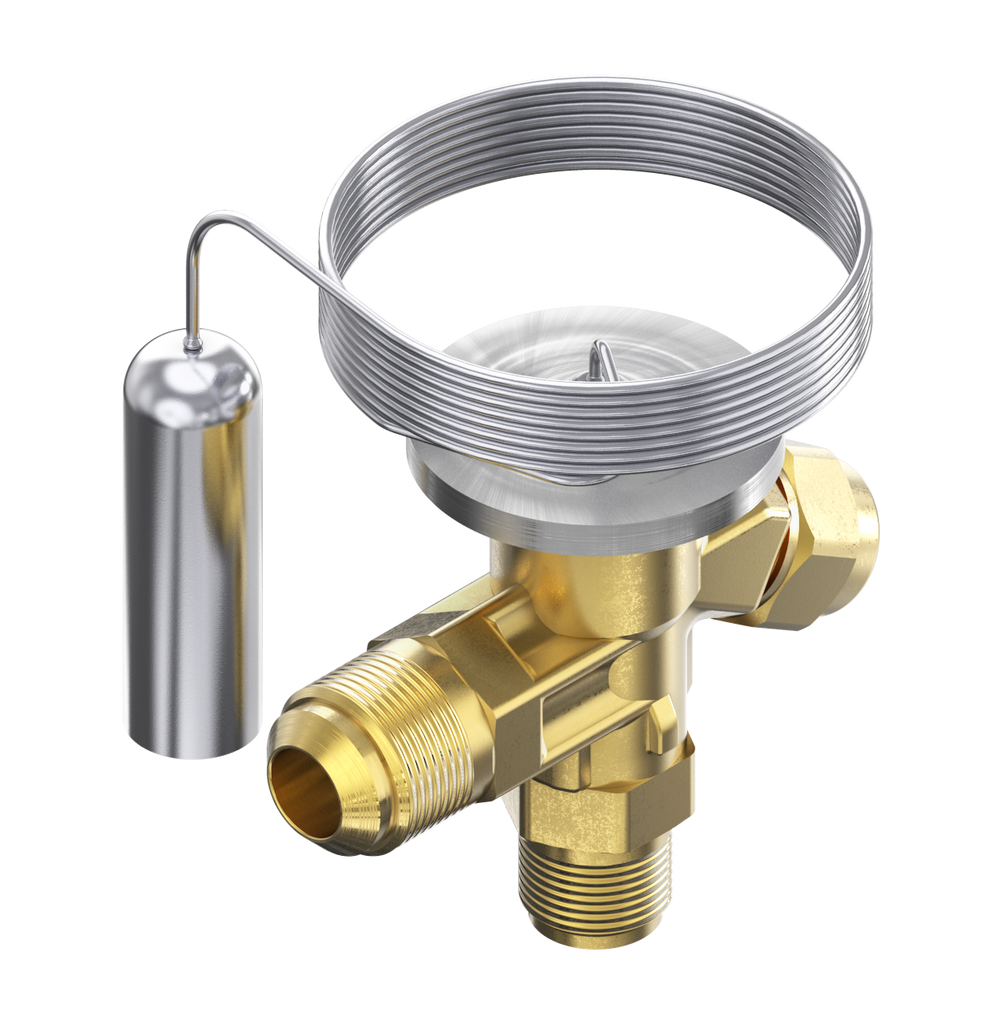

Thermostatic expansion valves maintain a constant superheat level at the evaporator outlet and regulate the injection of refrigerant liquid into evaporators.
Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
| Gross weight | 0.31 kg |
| Net weight | 0.28 kg |
| EAN | 5702422125280 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Brass |
| Direction | Angleway |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 068Z3508 |
| Inlet connection type | FLARE |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | FLARE |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Internally equalized |
| Product Accessories | TXV accessories |
| Product family name | T2 |
| Product Group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Rated cap. cond. Range N [IMP] | OS=10.8 ºF |
| tcond=100 ºF | |
| tevap=40 ºF | |
| tliq=98 ºF | |
| Rated cap. cond. Range N [SI] | OS=6K |
| tcond=38 ºC | |
| tevap=4.4 ºC | |
| tliq=37 ºC | |
| REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
| Refrigerants | R404A/R507A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | T 2 |
