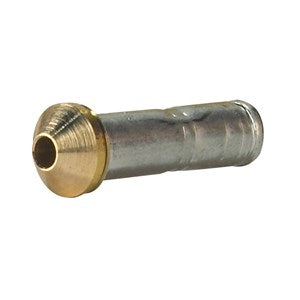

Orifice assemblies with filters, designed for use with either solder adapter product configurations or standard product configurations.
More Options available:
Part No | Orifice Size |
068-2002 | 0X |
068-2003 | 0 |
068-2010 | 1 |
068-2015 | 2 |
068-2006 | 3 |
068-2007 | 4 |
068-2008 | 5 |
068-2009 | 6 |
Gross weight | 0.02 kg |
Net weight | 0.01 kg |
EAN | 5702422034681 |
Approval | EAC LLC CDC TYSK |
Design | SAE flare only |
Fluid Group | 1 |
Orifice size | 04 |
Packing format | Multi pack |
Parts Program name | T2/TE2 |
PED category | Art. 4, par. 3 |
Product accessories | TXV accessories |
Product family name | T2 |
Product Group | Expansion valves |
Product name | Orifice for expansion valve |
Rated cap. cond. Range N [IMP] | tcond=100 ºF |
tevap=40 ºF | |
tliq=98 ºF | |
Rated cap. cond. Range N [SI] | tcond=38 ºC |
tevap=4.4 ºC | |
tliq=37 ºC | |
Rated cap. R134a, Range N [kW] | 6.4 kW |
Rated cap. R134a, Range N [TR] | 1.8 tons |
Rated cap. R22, Range B [kW] | 5.6 kW |
Rated cap. R22, Range B [TR] | 1.6 tons |
Rated cap. R22, Range N [kW] | 12.1 kW |
Rated cap. R22, Range N [TR] | 3.4 tons |
Rated cap. R404A, Range B [kW] | 4.5 kW |
Rated cap. R404A, Range B [TR] | 1.3 tons |
Rated cap. R404A, Range N [kW] | 9.9 kW |
Rated cap. R404A, Range N [TR] | 2.8 tons |
Rated cap. R407C, Range N [kW] | 12.4 kW |
Rated cap. R407C, Range N [TR] | 3.5 tons |
Rated cap. R507, Range B [kW] | 4.5 kW |
Rated cap. R507, Range B [TR] | 1.3 tons |
Rated cap. R507, Range N [kW] | 9.9 kW |
Rated cap. R507, Range N [TR] | 2.8 tons |
Rated cap. R513A, Range N [kW] | 5.4 kW |
Rated cap. R513A, Range N [TR] | 1.5 tons |
Refrigerants | R22/R407C |
R23 | |
R236fa | |
R404A/R507 | |
R134a/R513A | |
R407C | |
R407F | |
Serviceable | No |
System Line Application | Liquid Line |
Type | Orifice |
Used for product | T 2 |
TE 2 |
