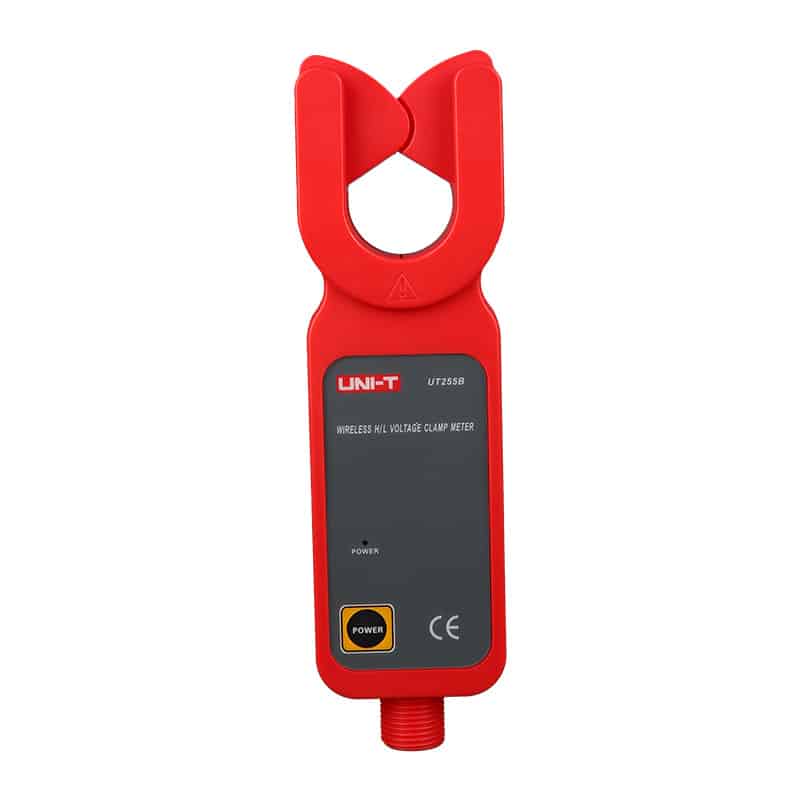

The UT255B high voltage clamp ammeter can measure up to 69kV high voltage line current and leakage current. UT255 comes with an insulation rod, allowing professional users to check the status of lightning arresters. The wireless model (UT255B) is also able to wirelessly transmit data in real-time up to 30m range. Its clamp can be easily removed from the wire by pressing or pulling back the insulation rod.
| Specifications | Range | UT255B |
| Leakage current (A) | 0.01mA~100A | ±(1%+5) |
| 100A~600A | ±(2%+5) | |
| Voltage (Freq.) 0V~69kV (50Hz/60Hz) | √ | |
| Features | ||
| Display Mode | 4 digits LCD | √ |
| Jaw Opening | 33mm | |
| Auto Range | √ | |
| Wireless Transmission | ≤30m | √ |
| Data Recall | √ | |
| Data Storage | 99 | |
| Peak Value | √ | |
| LCD Backlight | √ | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | √ | |
| Over-Range Display | OL | √ |
| Test Mode | Clamp CT, integration | √ |
| Sampling Rate | About 2 times/s | √ |
| General Characteristics | ||
| Power | 1.5V Battery (LR03) x 4 | |
| Display | 47mm x 28.5mm | |
| Product Colour | Red and grey | |
| Weight | 335g | |
| Dimensions | 68mm x 245mm x 40mm |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
