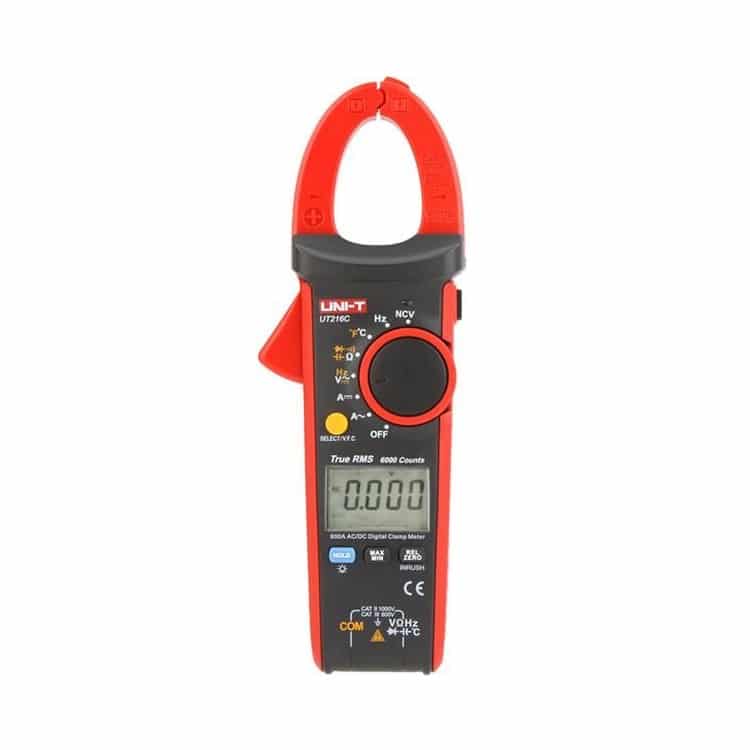

Uni-T 600A True RMS Digital Clamp Meter - UT216C
Uni-T 600A True RMS Digital Clamp Meter - UT216C
Uni-T 600A True RMS Digital Clamp Meter - UT216C
Uni-T 600A True RMS Digital Clamp Meter - UT216C
  • SKU: UT216C

Uni-T 600A True RMS Digital Clamp Meter - UT216C

$225.49
GST included.
    DESCRIPTION

    Uni-T 600A True RMS Digital Clamp Meter

    The UT216 series digital clamp meters are designed for measuring high-frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.


    FEATURES

    • True RMS
    • Auto range, 3 times/s sampling rate
    • MAX/MIN/Relative modes
    • Flashlight
    • NCV, non-contact AC voltage testing
    • 30mm jaw opening
    • Diode around 3.0V
    • Continuity buzzer
    • Inrush current
    • Data hold
    • VFC
    • Auto power off
    • Low battery indication ≤3.6V
    • LCD backlight


    WHAT'S INCLUDED

    • UT216C 600A True RMS Digital Clamp Meter
    • Test Leads
    • Batteries
    • Point Contact Temperature Probe
    • Operating Manual
    • Box


    SPECIFICATIONS

    UT216C Range Accuracy
    AC current (A) 600A ±(2.5%+5)
    DC current (A) 600A ±(2.5%+5)
    AC voltage (V) 750V ±(1.2%+5)
    DC voltage (V) 1000V ±(0.8%+1)
    Resistance (Ω) 60MΩ ±(1%+2)
    Capacitance (F) 60mF ±(4%+5)
    Frequency (Hz) 10Hz~1MHz ±(0.1%+4)
    Temperature (°C) -40°C~1000°C ±(2%+5)
    Temperature (°F) -40°F~1832°F ±(2%+10)


    General Technical Data
    Display count 6000
    Jaw opening 30mm
    Analog bar graph 61
    AC current frequency response 40~400Hz
    AC voltage frequency response 40~400Hz
    Certificates CE, UKCA, cETLus
    Category Ratings CAT II 1000V, CAT III 600V
    Power 1.5V battery (R03) x 3
    Display 38 x 24mm
    Dimensions 220 x 75 x 40mm
    Weight 231.7g
