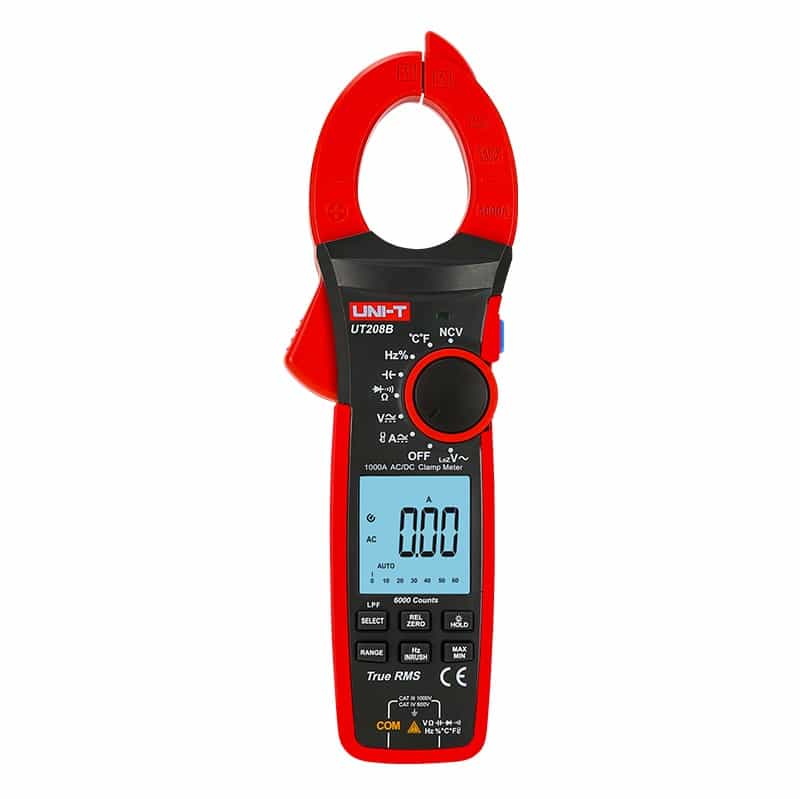

Uni-T 1000A True RMS Digital Clamp Meter - UT208B
Uni-T 1000A True RMS Digital Clamp Meter - UT208B
Uni-T 1000A True RMS Digital Clamp Meter - UT208B
  • SKU: UT208B

Uni-T 1000A True RMS Digital Clamp Meter - UT208B

$243.09
GST included.
DESCRIPTION

Uni-T 1000A True RMS Digital Clamp Meter

The UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL.

The UT208B comes with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current.

The  UT208B also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.


FEATURES

  • True RMS
  • 42mm jaw opening
  • NCV (audible/visual alarm)
  • Data hold/backlight/Flashlight
  • Flashlight button: Short press this button to turn on/off the flashlight
  • MAX/MIN/relative mode
  • Zero Mode
  • Diode/continuity test
  • Inrush current
  • Temperature measurement
  • LPF ACV
  • LoZ ACV


WHAT'S INCLUDED?

  • UT208B 1000A True RMS Digital Clamp Meter
  • Test Leads
  • Batteries
  • Point Contact Temperature Probe
  • Operating Manual
  • Box


SPECIFICATIONS

UT208B Range Accuracy
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 1000V ±(1.2%+3)
DC voltage (V) 1000V ±(0.5%+5)
Low pas filter (LPF ACV) 1000V ±(2%+5)
LoZ ACV 1000V ±(2%+5)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature (°C)  -40°C~1000°C ±(1%+2)
Temperature (°F)  -40°F~1832°F ±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)


General Technical Data
Display count 6000
Jaw opening 42mm
Analog bar 31
AC current frequency response 40Hz~400Hz
Certificates CE, UKCA, cETLus
Category Ratings CAT II 600V, CAT III 300V
Power 1.5V battery (R03) x 3
Display 43 x 45mm
Dimensions 272 x 81 x 43.5mm
Weight 420g
