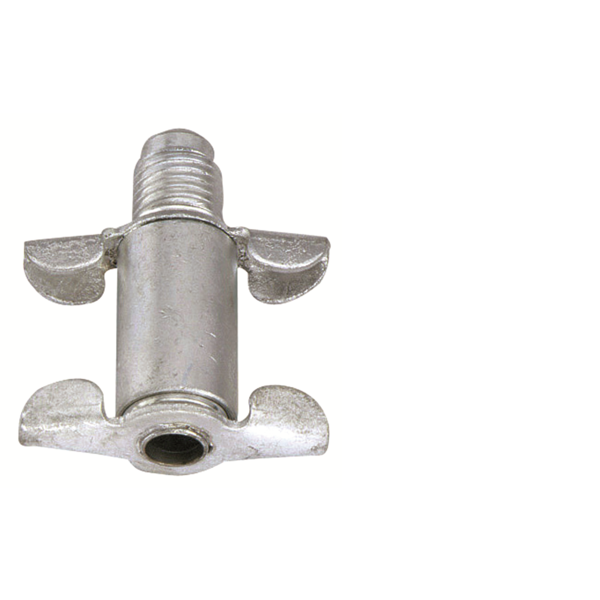

Imperial Process Tube Adaptor 1/4" SAE 241-F03

241-F03 Process Tube Adapter For Charging and Testing

• Offers a convenient method of making a service connection to a hermetic unit
• Ideal for providing a connection in testing coils and tubing installations
• Handles pressure up to 100 PSI
• Synthetic rubber seal of adapter grips and seals outside of the tube
• Gives a 1/4” SAE male flare connection to the system for evacuating, charging or testing
• The adapter can be reused repeatedly

If the pinch-off tube on the hermetic compressor is cut-off, 241F is placed on the tube. The charging line is connected to the flare end of 241F.

WHAT'S INCLUDED

1 x 241-F03 Process Tube Adapter
