Imperial 45° Rol-Air™ Flaring Tool 3/16" to 5/8" 500-FC
500-FC
$166.00 inc GST
Estimated Delivery Between and .

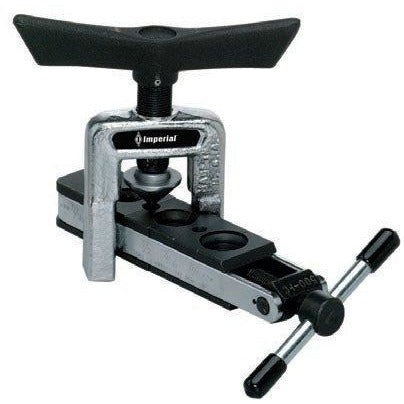

Imperial 45° Rol-Air™ Flaring Tool 3/16" to 5/8" 500-FC
500-FC 45o Rol-Air Flaring Tool 3/16" to 5/8" OD Tube
Flares and burnishes 3/16”, 1/4”, 5/16”, 3/8”, 1/2” and 5/8” O.D. tubing.

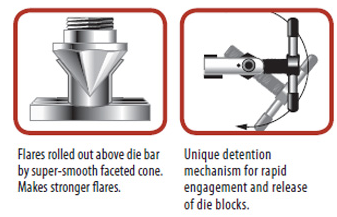

The faceted, hardened steel, chrome finished cone rolls out perfect 45° flares above die block, and automatically burnishes flare face reducing the need for deburring.
Original wall thickness is maintained at base of flare.
Slip-on yoke permits use in tight quarters, where there is little space between nut and tube end.
Larger handle, with better leverage, and precision threads on feed screw make flaring effortless.
Heat treated dies grip tubing without scoring.
Satin chrome and black finish. Wt. 1.5 lbs. [No Case]
.png)
| SKU | 500-FC |
| Brand | Imperial |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.200m |
| Assembled Height | 0.050m |
| Assembled Width | 0.100m |
