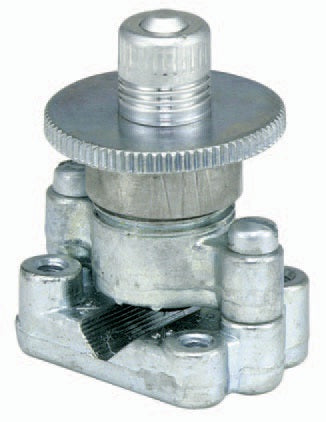

Imperial 3 in 1 Line Piercing Valve for 3/8”, 1/2” and 5/8” OD Tubing - 542-C
  • SKU: 542-C

Imperial 3 in 1 Line Piercing Valve for 3/8”, 1/2” and 5/8” OD Tubing - 542-C

$174.89
GST included.
    DESCRIPTION

    RODUCT DESCRIPTION

    542-C 3 in 1 Line Piercing Valve fits 3/8”, 1/2” and 5/8” O.D. tubing

    • Fast, easy, secure installation
    • Provides access to line at any point for charging, testing or evacuation
    • Two valves cover 3/8” to 5/8” O.D. tubing
    • Have depressor valve and needle valve shut-off
    • Valve clamps on tubing line with two captive slotted-head screws: positive built-in mechanical stop for each tube size eliminates tightening guesswork

    To pierce tube, thread down the combination l/4” flare port, stem and needle using knob furnished or a suitable wrench, back off stem and connect depressor-type hose for testing or charging. After service is completed valve is closed and left on line for future service. Dust cap provided.

    Three-point sealing ((1) needle-type valve, (2) gasket and (3) check valve) prevents
    leakage. Neoprene seal withstands temperatures near 300°F.
