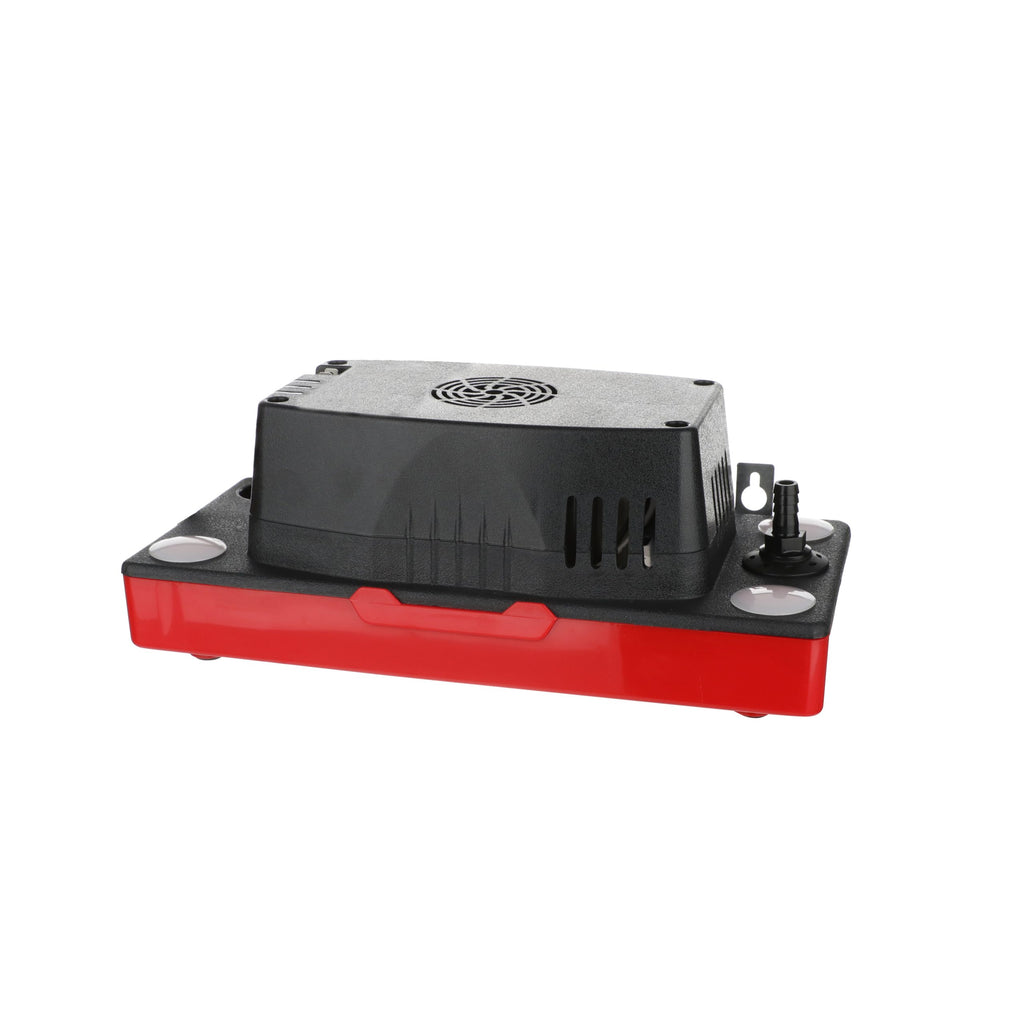

Diversitech Redbox 1L Condensate Pump CP-22LP-230

Suitable for use with condensate from HVAC equipment which produces condensate

DOWNLOAD DATASHEET

DOWNLOAD MANUAL

This pump is designed to automatically remove the condensate water that collects from appliances such as air conditioners, high-efficiency furnaces and de-humidifiers. The pump has a built-in tank that collects water from the appliance. When water collected reaches a sufficient level inside the pump tank, the pump switches on and pumps water to a remote location for disposal

CP-22LP-230 Condensate Pump for standard applications is only 10cm tall. It is a great option when space is at a premium. The 230-volt pump features 6.7 meters of lift, vibration-dampening feet and motor mounts, a check valve, and an overflow switch. The shorter reservoir holds 1.25 litres of condensate water. Suitable for use with condensate up to 70°C

FEATURES

• Vibration Isolation - elastomeric motor mounting gasket dampens vibration
• Indicator Lights - shows the pump status. Green shows the power applied to the pump, yellow shows the pump is running, and red is for high-level alarm
• Rubber Feet - the rubber feet that support the CP-22 Condensate pump help to dampen vibration which reduces noise
• Four Inlet Holes - the four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for durability
• Removable Check Valve - the CP-22 Condensate Pump features a removable check valve which allows for hassle-free cleaning
• Overflow Safety Switch - the 1/4″ quick connect terminals provide easy connection to the built-in overflow switch. Two terminals are provided allowing the installer flexibility to connect the air handler shut-down. The switch features SPDT-isolated contacts ready for connection to building automation systems
• Metal Hang Tabs - the CP-22 Condensate Pump comes equipped with shatterproof stainless steel hang tabs which have a hole-and-slot design for easy mounting. The tabs are located on convenient 8″ centres

WHAT'S INCLUDED

• 1 x 1L Redbox Condensate Pump

SPECIFICATION:

• Dimension: 10 x 15 x 17 cm
• Flow Rate: 6 LPM
• Discharge head: 6.7 meters
• Reservoir Capacity: 1.4 Litres
• Input supply rating: 230 volt AC 60 hertz 1 amp
• Temperature rating: 60c (continuous), 70c (Inlet)
• Options: Safety switch
• Application: High-efficiency furnace and Humidifier
• Applicable standard: UL
• Input type: NEMA 6 to 15 Plug
• Inlet height size from the base: 11.20 cm
• Connection Type:  Hardwired / Stripped Wire
