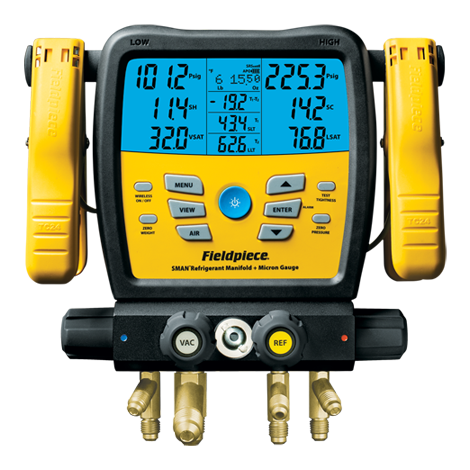

Wireless SMAN® 4-Port Digital Refrigerant Manifold with built-in Data Logging
The newly designed SM480vINT Fieldpiece Manifolds are stronger and more robust than ever before!
The SM480VINT is simply the next level with the heavy-duty casing, reinforced hook, water & impact-resistant screen. The strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigours of field use.
This refrigeration manifold comes with a built-in micron gauge for measuring vacuum.
The SM480VINT is designed for Refrigeration & Air Conditioning Technicians to work the way you do with advanced features to streamline your job and provide your customers with the answers they need.
• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)
Tightness Test built-in feature
• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temp to avoid false positives
• Adjust auto power off duration
• Adjust backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement individually
Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.
Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 100 meter wireless range (no transmitter needed)
|Display||LCD (5 inches diagonal)|
|Backlight||Blue (adjustable duration)|
|Low Battery Indication||Displayed when the battery voltage drops below the operating level|
|Over Range Display||OL for pressure, – – – – for temperature|
|Auto Power Off||30 minutes of inactivity (adjustable)|
|Maximum Manifold Pressure||800 Psig (5500 kPa)|
|Battery Type||6 x AA alkaline|
|Battery Life||350 hours typical (without vacuum, backlight, and wireless)|
|Radio Frequency||2.4 GHz|
|Wireless Range||305 meters line of sight – distance decreases through obstructions|
|Data Port||Micro USB (for extracting data logs or updating firmware)|
|Operating Environment||0°C to 50°C at <75% RH|
|Storage Environment||-20°C to 60°C at <80% RH (with battery removed)|
|Temperature Coefficient||0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)|
|Water Resistant||Designed to IP54|
1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
